Explore industrial hoses designed for abrasive blasting, material handling, fluid transfer, hydraulic equipment, and demanding industrial applications. Find rubber, thermoplastic, metal, ducting, and specialty hose solutions to match your operating requirements.
Industrial hoses play an essential role in transferring liquids, air, abrasive materials, chemicals, and other substances across different operations. Selecting the appropriate hose helps support efficient material handling and reliable equipment performance.
Kuriyama offers a broad range of industrial hose solutions, including rubber, thermoplastic, hydraulic, metal, and specialty hoses. Each hose series is designed around specific operating requirements, such as flexibility, pressure, temperature, and material compatibility.
For abrasive blasting and surface preparation, specialized hoses support compressed air delivery, abrasive material transfer, dust extraction, and equipment connections. Other industrial hose types serve applications such as water handling, construction, manufacturing, agriculture, and maintenance.
Choosing the right industrial hose requires consideration of the material being transferred, working pressure, operating temperature, hose dimensions, and connection requirements. Reviewing these specifications helps identify a suitable hose for each application.
Kuriyama industrial hose products cover a wide range of material transfer, fluid handling, and industrial equipment applications. Available product families include rubber hoses, thermoplastic hoses, hydraulic hoses, ducting, metal hoses, and specialty configurations.
Specialized hoses designed for transferring abrasive materials, dry bulk products, concrete, slurry, and other industrial materials.

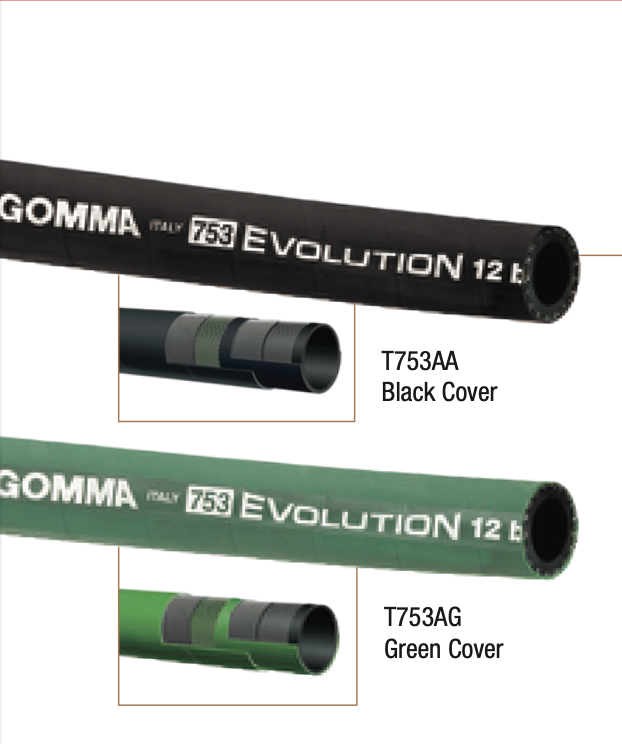

4-Ply Abrasive Material Blast Hose
GENERAL APPLICATIONS • Designed to convey abrasives, sand and shot blast material
CONSTRUCTION Tube – Black static conducting natural rubber – offering excellent abrasion resistance, upgraded to 50mm3 (cubed) rating Reinforcement – High tensile textile cords – 4-ply construction Cover – Black or green, conductive SBR/NR blend – abrasion and ozone resistant – pin pricked

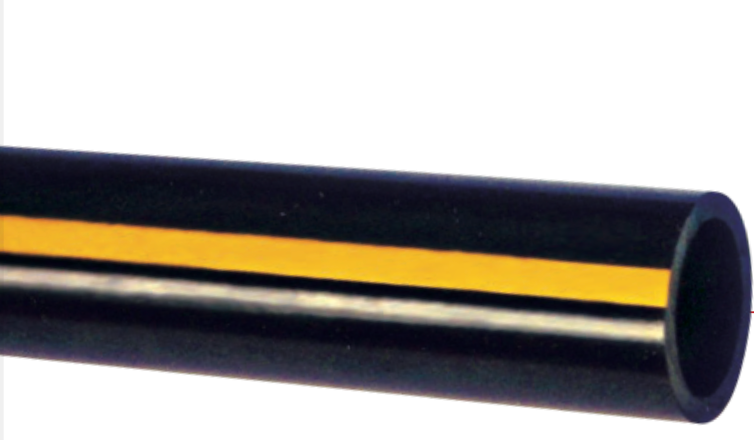

Anti-Static Blasting Hose
GENERAL APPLICATIONS • Bulk unloading of ammonium nitrate/fuel oil blasting agents in small diameter holes • Mining and construction site blasting • Successfully used for years with Orica’s blast hole chargers, intermediate loaders and the Penberthy Anoloader
CONSTRUCTION Phthalate free specially-formulated anti-static PVC

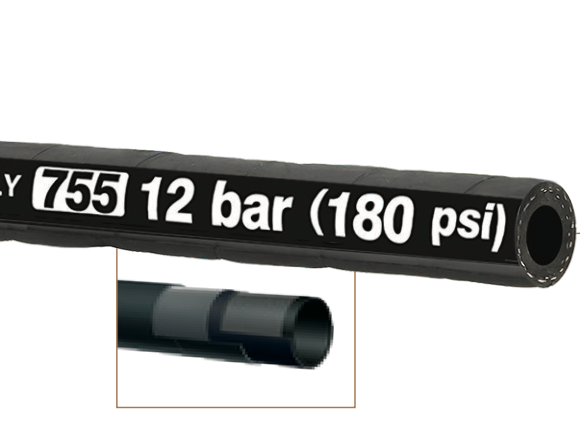

2-Ply Abrasive Material Blast Hose
GENERAL APPLICATIONS • Designed to convey abrasives, sand and shot blast material
CONSTRUCTION Tube – Black static conducting NR – offering excellent abrasion resistance, upgraded to 36mm3 (cubed) rating Reinforcement – High tensile textile cords – 2-ply construction Cover – Black conductive SBR/NR blend – abrasion and ozone resistant – pin pricked

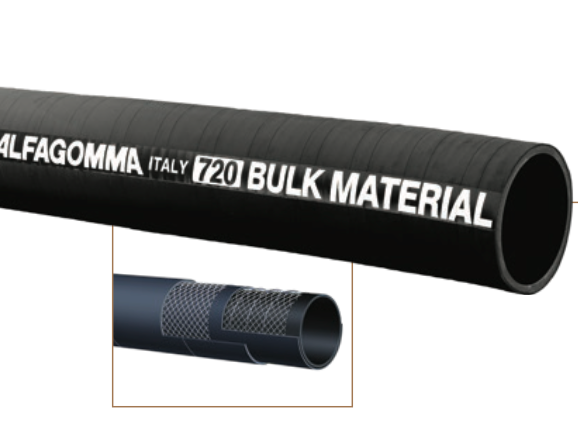

Bulk Material Suction & Discharge Hose
GENERAL APPLICATIONS • Designed for grains and dry cement • Suction and discharge of wet or dry abrasive materials
CONSTRUCTION Tube – 3/16" black conductive NR – abrasion resistant Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire Cover – Black conductive SBR/NR blend – abrasion and ozone resistant

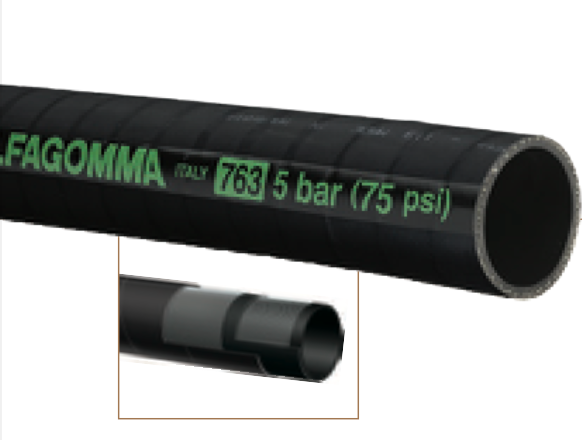

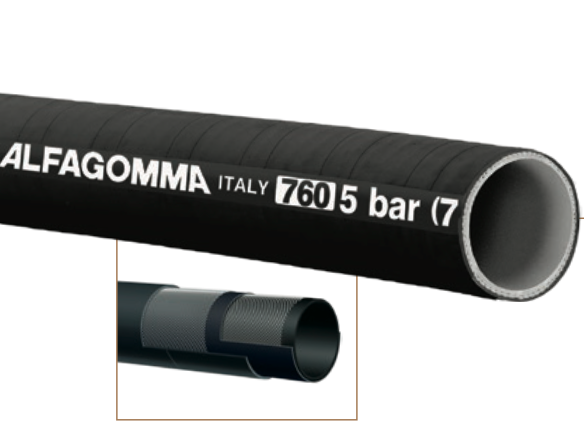

Dry Powder Delivery Hoses
GENERAL APPLICATIONS • Discharge of dry powders under low pressure, such as dry cement, grains and animal feed transfer
CONSTRUCTION Tube – 3/16" black static conducting NR – compounded to resist cutting by abrasive materials Reinforcement – Spiraled high tensile textile cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant

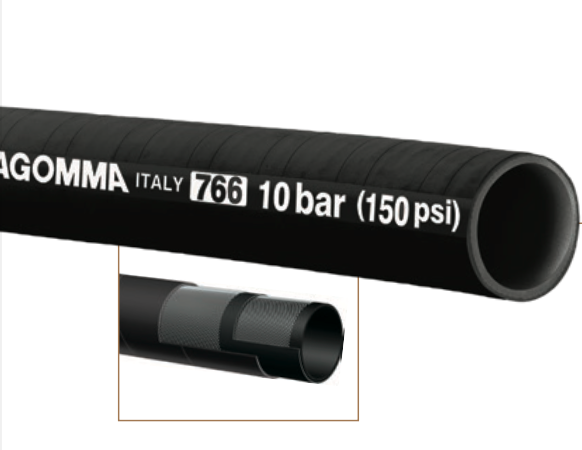

Dry Powder Delivery Hoses
GENERAL APPLICATIONS • Discharge of dry powders under low pressure • Pneumatic transfer of dry materials and abrasive slurries
CONSTRUCTION Tube – 1/4" black static conducting NR – compounded to resist cutting by abrasive materials Reinforcement – Spiraled high tensile textile cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
Dry Powder Delivery Hoses
GENERAL APPLICATIONS • Discharge of dry powders in heavy duty applications, such as dry cement, grains and animal feed transfer
CONSTRUCTION Tube – 1/4" black static conducting NR – compounded to resist cutting by abrasive materials Reinforcement – Spiraled high tensile textile cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant

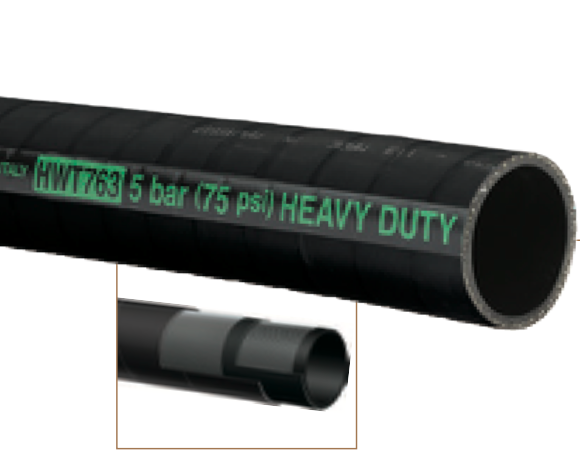

Heavy-Duty Dry Powder Delivery Hose
GENERAL APPLICATIONS • Discharge of dry powders under low pressure • Pneumatic transfer of dry materials and abrasive slurries
CONSTRUCTION Tube – 3/8" black static conducting NR – compounded to resist cutting by abrasive materials Reinforcement – Spiraled high tensile textile cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant

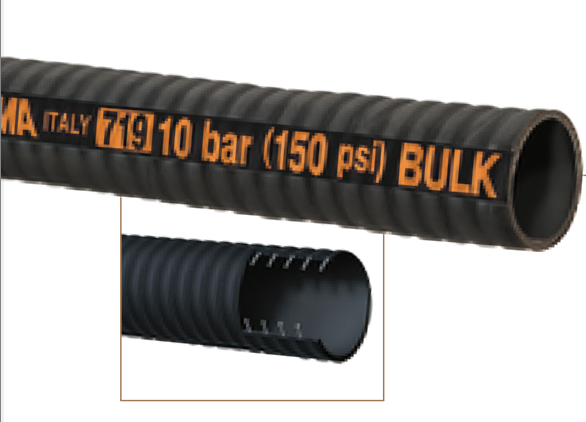

Slurry Handling Hose
GENERAL APPLICATIONS • Cement industry (lime, stone and other slurries) • Mining Industry (crushed/ground ore, washed coal and waste products) • Rock quarries (crushed/ground ore, sand and river stone) • Vacuum Trucks (heavy-duty replacement hose for sewer and waste suction vehicles)
CONSTRUCTION Tube: Black conductive NR-abrasion resistance 50 mm3 Reinforcement: High tensile textile cords with embedded steel helical wire Cover: Corrugated black conductive CR-abrasion, ozone, seawater and hydrocarbon resistant

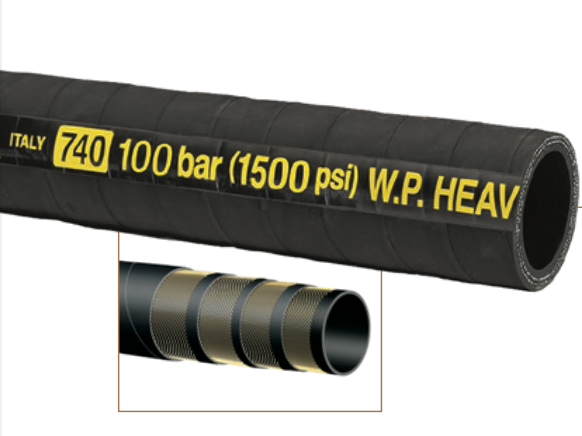

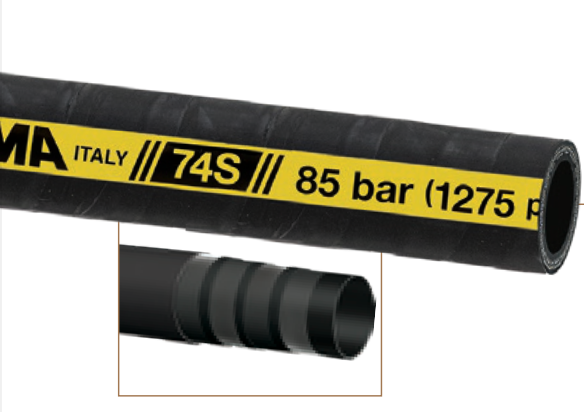

Concrete Pumping Hoses
GENERAL APPLICATIONS • Heavy-duty, steel-reinforced construction for use on concrete boom pumps and other demanding applications
CONSTRUCTION Tube – Black conductive NR – abrasion resistant Reinforcement – High tensile steel cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant
Concrete Pumping Hoses
GENERAL APPLICATIONS • Easy-handling, textile-reinforced construction for use on trailer mounted line pumps where longer hose lengths are required • Larger sizes used on concrete boom pumps • Replacement hose for wire-reinforced concrete hose where lightweight and ease of handling are warranted
CONSTRUCTION Tube – Black conductive NR – abrasion resistant Reinforcement – High tensile textile cords Cover – Black conductive SBR/NR blend – abrasion and ozone resistant

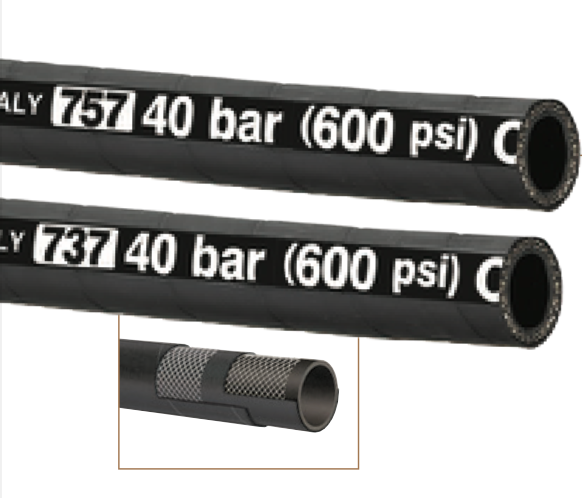

Plaster & Concrete Hoses
GENERAL APPLICATIONS • Designed for pumping plaster, grout, and wet cement to placement sites
CONSTRUCTION Tube – Black conductive NR – abrasion resistant Reinforcement – High tensile textile cords Cover – Black conductive SBR/NR – abrasion and ozone resistant

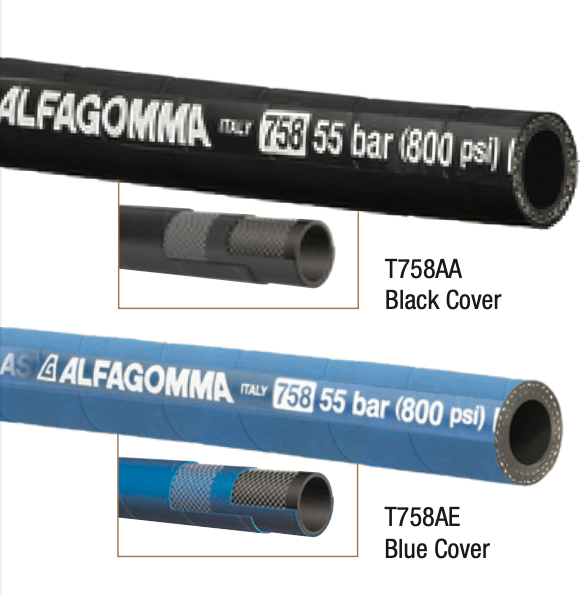

Plaster, Grout & Concrete Hoses
GENERAL APPLICATIONS • Designed for pumping plaster, grout, wet cement to construction placement sites at rated pressures
CONSTRUCTION Tube – Black conductive NR – abrasion-resistant Reinforcement – Spiraled high tensile textile cords Cover – Black SBR/NR. Blue SBR/EPDM
Rubber hose solutions for air, water, pneumatic equipment, construction, maintenance, and general industrial service.

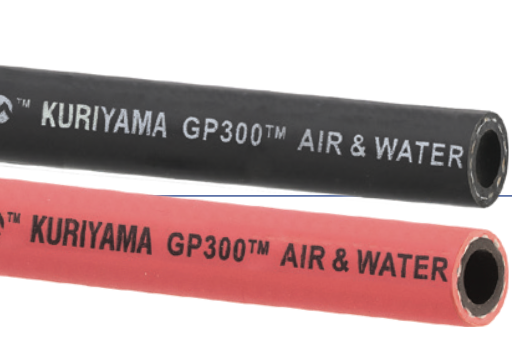

Rubber General Purpose Air & Water Hose
GENERAL APPLICATIONS • Air and water service in industrial, construction, and agricultural applications • Air compressors • Pneumatic tools • Spray equipment • Low-pressure transfer of non-corrosive liquids
CONSTRUCTION Tube – Black EPDM Reinforcement – Braided polyester yarn Cover – Black or Red EPDM

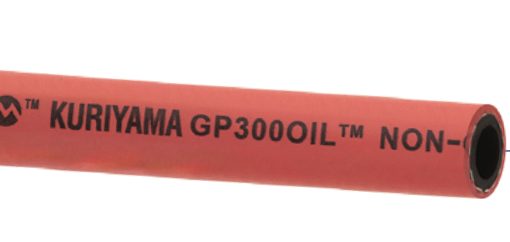

Non-Conductive High Oil-Resistant General Service Hose
GENERAL APPLICATIONS • Air and water service where contact with oil or oily mists is frequent • Use in manufacturing plants, maintenance shops, and industrial facilities requiring high oil resistance and electrical non-conductivity • Air compressors • Pneumatic tools • Equipment in environments exposed to lubricants or petroleum-based fl uids • Fuel transfer applications involving unleaded gasoline and diesel fuel
CONSTRUCTION Tube – Black NBR, ARPM Class A High Oil Resistant Reinforcement – Braided polyester yarn Cover – Red NBR/PVC, ARPM Class A High Oil Resistant

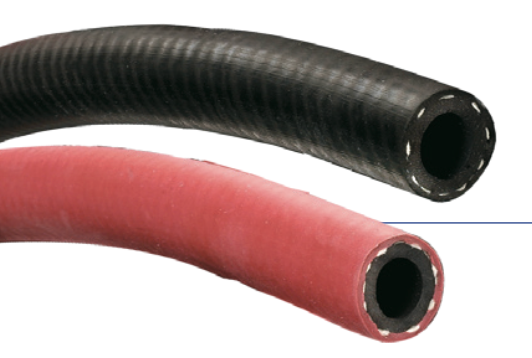

EPDM Rubber General Purpose Air & Water Hose
GENERAL APPLICATIONS • Agricultural • Construction • Industrial • Water service lines
CONSTRUCTION Tube – Black EPDM, limited oil resistance Reinforcement – Spiral polyester yarn Cover – Black or red abrasion and ozone-resistant EPDM, limited oil resistance

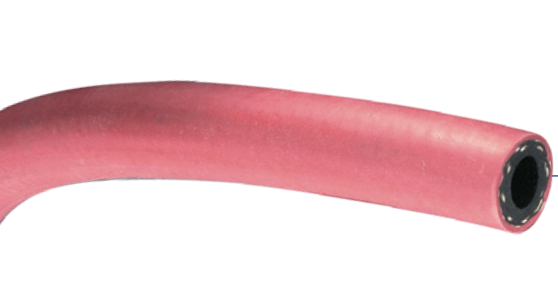

Non-Conductive High Oil-Resistant General Service Hose
GENERAL APPLICATIONS • Diesel • Oil • Fuel oil • Other petroleum products • Do not use this product for curb pump fueling applications • Not recommended for unleaded gasoline
CONSTRUCTION Tube – Black NBR, ARPM Class A High Oil Resistant Reinforcement – Spiral polyester yarn Cover – Red NBR, ARPM Class A High Oil Resistant

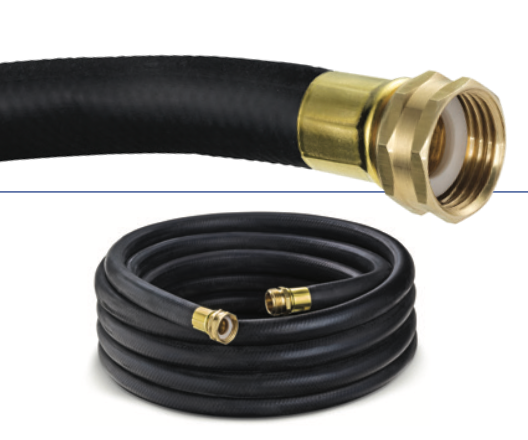

Black 150 PSI Contractor’s Water Hose Coupled Assemblies
GENERAL APPLICATIONS • Concrete clean-up • Contractor’s water hose • Garden watering • Washdown
CONSTRUCTION Tube – Black EPDM Reinforcement – Polyester yarn Cover – Black EPDM

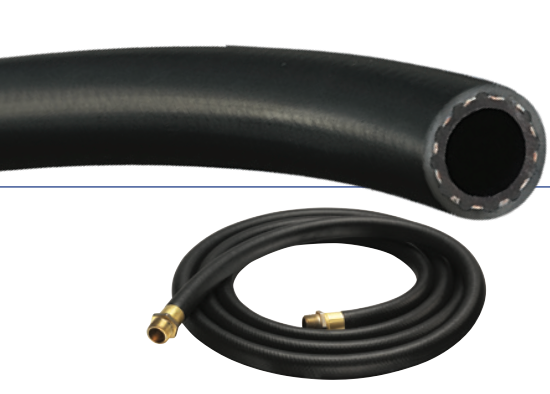

Farm Tank Bulk Hose & Coupled Assemblies
GENERAL APPLICATIONS • Agricultural equipment fuel fi ller hose • Electrical pumps; built-in static wire provides safety • Farm or barrel-type pumps • Fuel dispensing hose for construction and industrial equipment Note: This is not a UL approved hose and should not be used in curb pump hose applications.
CONSTRUCTION Tube – Black NBR, ARPM Class A High Oil Resistant Reinforcement – 2-Spiral high tensile polyester yarn Cover – Black NBR Blend, ARPM Class A High Oil Resistant

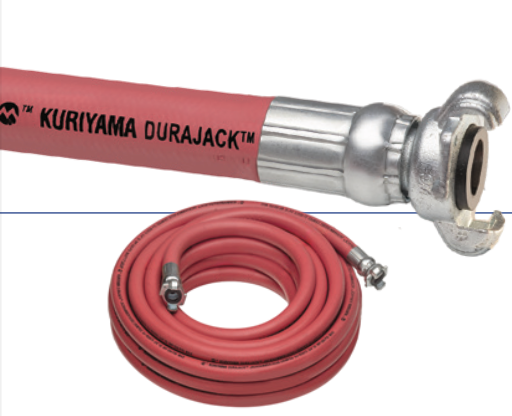

300 PSI Red Cover Jackhammer Hose Assemblies
GENERAL APPLICATIONS • A heavy-duty air hose designed for use with pneumatic jackhammers and other air-operated tools in construction, roadwork, and demolition applications. • Built to withstand rugged handling and severe working conditions, providing excellent fl exibility, abrasion resistance, and coupling retention under high air pressure.
CONSTRUCTION Tube – Black EPDM Reinforcement – Braided polyester yarn Cover – Red abrasion and ozone resistant EPDM

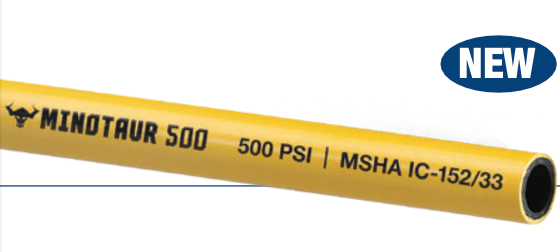

500 PSI Air and Multipurpose Hose
GENERAL APPLICATIONS • Air hammer • Heavy construction • Mining • Petroleum transfer • Quarry operations • Rock drilling • Washdown • Water jetting
CONSTRUCTION • Tube – Black non-conductive NBR (ARPM Class A) • Reinforcement – High tensile textile braids • Cover – Yellow NBR – abrasion, ozone, hydrocarbon resistant, non-conductive and MSHA-approved fl ame-resistant smooth cover. 1 1/4" and 1 1/2" ID wrapped fi nish.

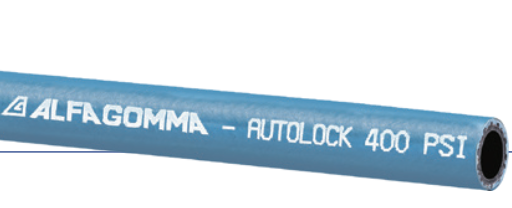

Braided Push-On Hose
GENERAL APPLICATIONS • Air tools • Pneumatic and low-pressure hydraulic systems • Lubricating oils, diesel fuel and antifreeze solutions • Water lines for molding and blow-forming machines • Robotic welders • Chemical and paper industries • Automation and machine tools
CONSTRUCTION • Tube: Oil-resistant synthetic rubber NBR (ARPM Class A) • Reinforcement: High-strength textile braid for secure fi tting retention • Cover: Abrasion, ozone, and fl ame resistant NBR cover (MSHA-approved)

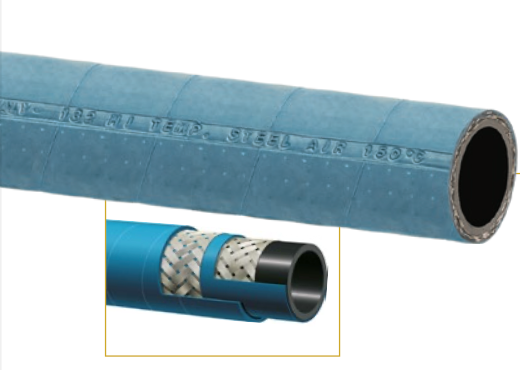

High Temp Braided Steel Wire Air Hose
GENERAL APPLICATIONS • High pressure compressed air hose designed for heavy-duty use in mines, quarries, construction and industry where long service life and maximum safety is required.
CONSTRUCTION Tube – Black Chlorobutyl – resistant to oil mist (maximum 6 parts/million) and high temperature resistant Reinforcement – High tensile steel wire braids Cover – Blue EPDM – abrasion and ozone resistant – pin pricked

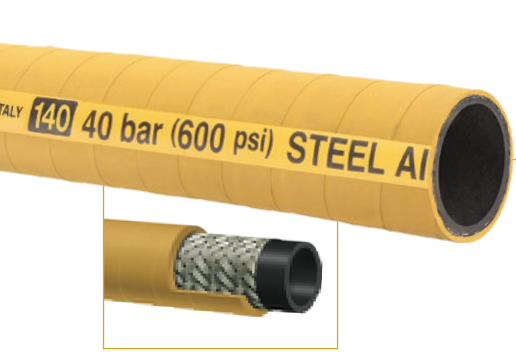

Braided Steel Wire Air Hose
GENERAL APPLICATIONS • High pressure air hose for heavy-duty use in mines, quarries, construction and industry
CONSTRUCTION Tube – Black Extruded SBR – resistant to oil mist Reinforcement – High tensile steel wire braids Cover – Yellow SBR – abrasion and ozone resistant – pin pricked – limited UV resistance

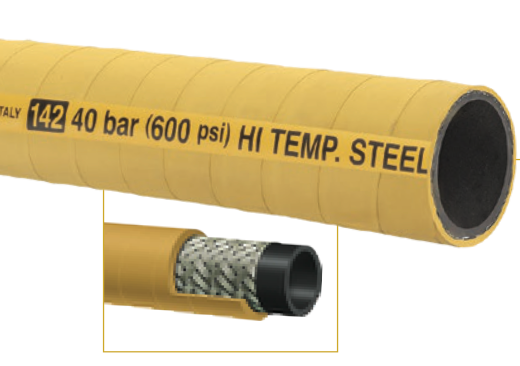

High Temperature – Oil Resistant Steel Braided Reinforced Air Hose
GENERAL APPLICATIONS • Designed for long lasting service and maximum safety in heavy duty applications where resistance to oil is required • High pressure air for mines and quarries
CONSTRUCTION Tube – Black Extruded NBR (RMA Class A) – oil mist resistant Reinforcement – High tensile steel wire braids Cover – Yellow SBR/NBR – abrasion, ozone, hydrocarbon and fl ame resistant – pin pricked

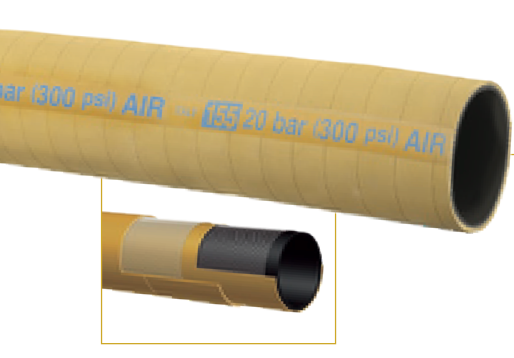

300 PSI Textile Cord “Air Drill” Hose
GENERAL APPLICATIONS • High quality air hose for mining and construction service • Can be used for water
CONSTRUCTION Tube – Black non-conductive SBR/NBR blend – oil mist resistant Reinforcement – Spiraled, high tensile textile cords Cover – Yellow non-conductive SBR – abrasion and ozone-resistant

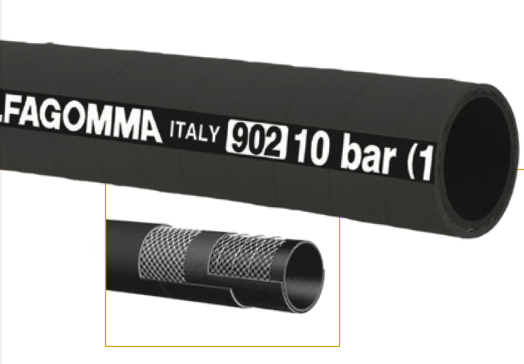

150 PSI High Quality Hot Air Blower Hose
GENERAL APPLICATIONS • Hot air transfer between the air compressor and dry bulk tank on bulk material carriers
CONSTRUCTION Tube – Black EPDM – heat-resistant Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire Cover – Black EPDM – heat, abrasion and ozone resistant

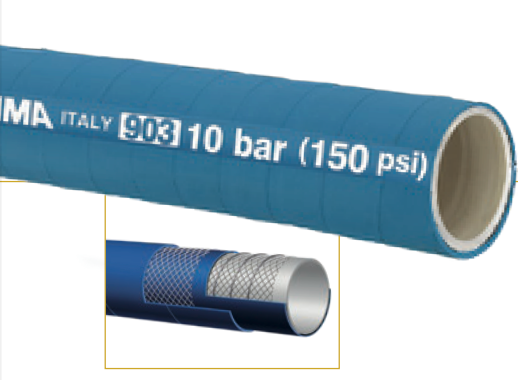

150 PSI High Quality FDA Hot Air Blower Hose
GENERAL APPLICATIONS • Hot air transfer between the air compressor and dry bulk tank on bulk material carriers
CONSTRUCTION Tube – White EPDM – heat-resistant. Meets FDA requirements Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire Cover – Blue EPDM – heat, abrasion and ozone resistant

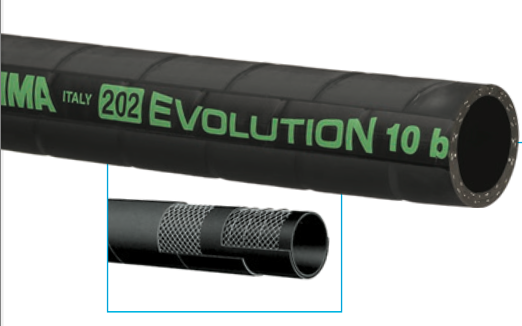

150 PSI EPDM General Purpose Water S & D Hose
GENERAL APPLICATIONS • Construction • Fertilizers • Irrigation lines • Lasso acid solutions • Suction and discharge • Non-corrosive liquids
CONSTRUCTION Tube - Black EPDM Reinforcement - Spiraled high tensile textile spiral cords with fl exible steel helix wire Cover - Black EPDM – abrasion, ozone, and UV resistant

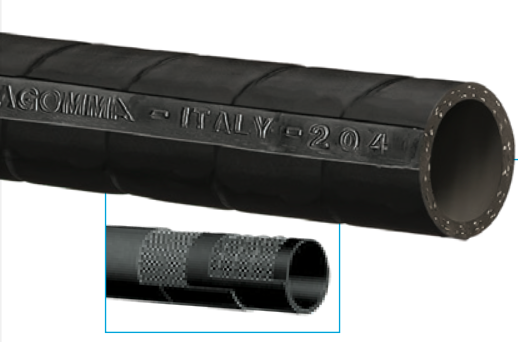

75 PSI SBR Water S & D Hose
GENERAL APPLICATIONS • Suction and discharge of water for irrigation and construction
CONSTRUCTION Tube – Black SBR Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire Cover – Black SBR – ozone and abrasion-resistant

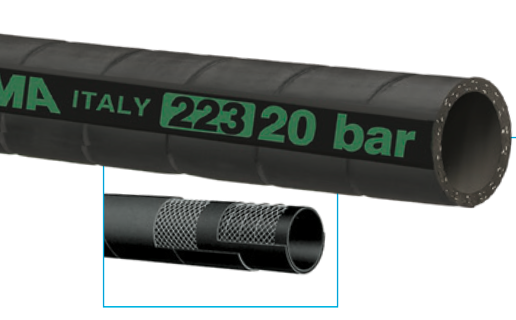

300 PSI EPDM Heavy Duty S & D Hose
GENERAL APPLICATIONS • Designed for long service life in heavy duty applications for water suction and delivery service • Heavy duty water suction and discharge applications for irrigation, agriculture, mining and construction
CONSTRUCTION Tube - Black conductive EPDM Reinforcement - Spiraled high tensile textile cords with fl exible steel helix wire Cover - Black conductive EPDM – abrasion and ozone resistant

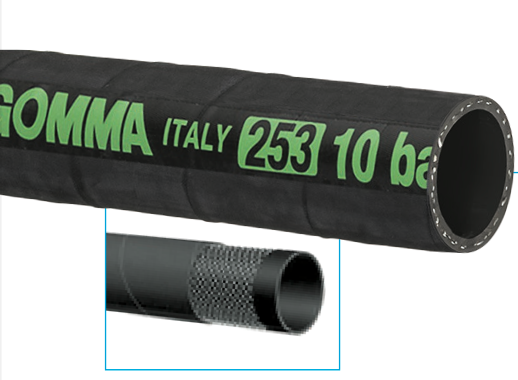

150 PSI EPDM Layflat Water Discharge Hose
GENERAL APPLICATIONS • High pressure, 150 PSI lay fl at type hose for general industrial construction and irrigation
CONSTRUCTION Tube – Black EPDM Reinforcement – High tensile textile cords – 2 spirals up to 4", 4 spirals above 4" Cover – Black EPDM – abrasion and ozone-resistant

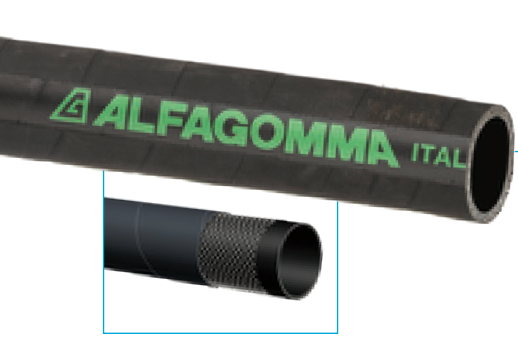

150 PSI SBR Water Discharge Hose
GENERAL APPLICATIONS • Water discharge hose for construction and irrigation
CONSTRUCTION Tube – Black SBR Reinforcement – High tensile textile cords – 2 spirals up to 4", 4 spirals above 4" Cover – Black SBR – abrasion and ozone-resistant
Industrial rubber hose solutions for chemical transfer, food handling, petroleum operations, steam, hot water, and specialized industrial services.

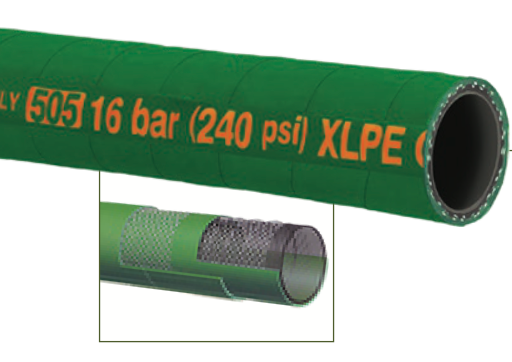

Acid – Chemical S & D 240 PSI – XLPE
GENERAL APPLICATIONS • Suction and transfer service for a variety of chemicals and solvents. • Will handle 90% of existing chemicals. See Chemical Resistance Chart on pages 87 – 96
CONSTRUCTION Tube – Transparent XLPE (cross-linked polyethylene) Reinforcement – High tensile textile cords with fl exible steel helix wire Cover – Green EPDM – abrasion and ozone resistant

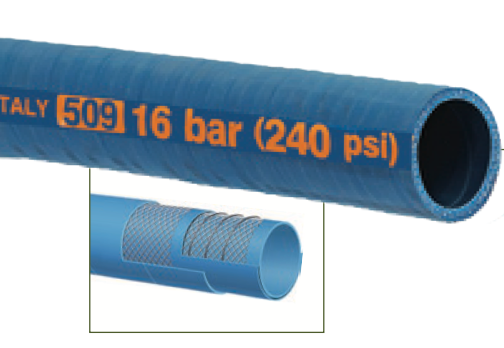

Acid – Chemical S & D 240 PSI – UHMWPE Meets FDA Requirements, Suitable for use with DEF
GENERAL APPLICATIONS • Can handle 190 proof spirits • Suction and transfer service for a variety of chemicals and acids • Will handle 98% of EXISTING CHEMICALS See Chemical Resistance Chart on pages 87 – 96
CONSTRUCTION Tube – Transparent UHMWPE (Ultra High Molecular Weight Polyethylene) Reinforcement – Synthetic textile cords with flexible steel helix wire Cover – Blue EPDM – abrasion and ozone resistant

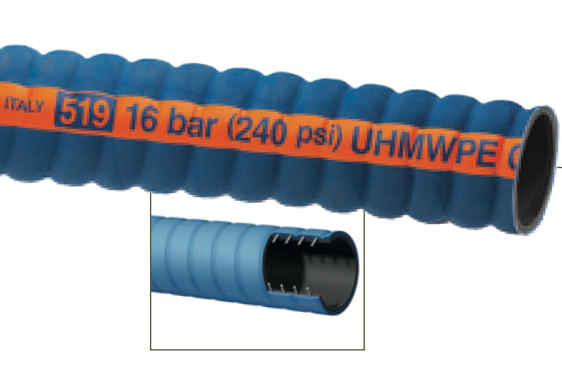

Acid – Chemical S & D 240 PSI – UHMWPE Meets FDA Requirements – Corrugated, Suitable for use with DEF
GENERAL APPLICATIONS • Suction and transfer service for a variety of chemicals and acids. • Will handle 98% of existing chemicals. See Chemical Resistance Chart on pages 87 – 96 • Can handle 190 proof spirits
CONSTRUCTION Tube – Transparent UHMWPE (Ultra High Molecular Weight Polyethylene) Reinforcement – Synthetic textile cords with flexible steel helix wire Cover – Blue EPDM – abrasion and ozone resistant

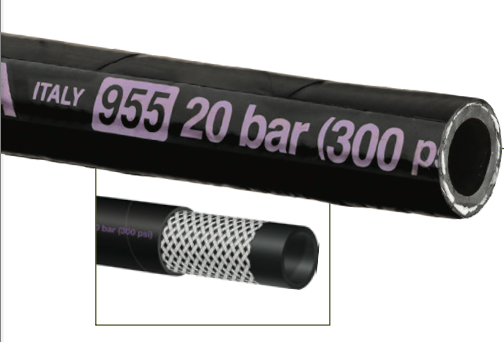

Dispensing Hose For Diesel Exhaust Fluids (DEF)
GENERAL APPLICATIONS • DEF fuel trailers • DEF station pumps • Drum filling • Mobile filling trailers • Portable dispensers• Transfer carts • Used to convey the high-purity, aqueous urea solution, DEF (Diesel Exhaust Fluid), in dispensing equipment systems
CONSTRUCTION Tube – Black, conductive sulphur-free EPDM Reinforcement – High tensile textile braids Cover – Black, conductive abrasion and ozone resistant EPDM

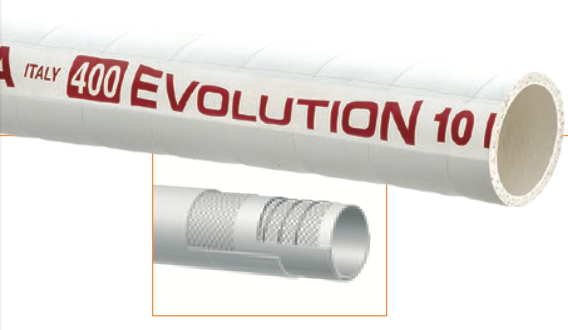

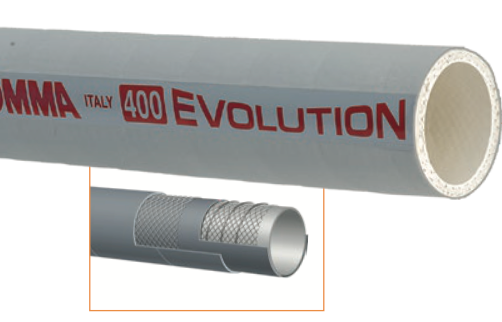

Multi Food S & D Hose
GENERAL APPLICATIONS • Alcoholic beverages – wine, beer & spirits up to 75% alcohol content and 150 proof • Fat foods-perfect for animal fats and any vegetable oils • Hot food-constant operations: liquid food up to +230°F (+110°C), fat foods up to +248° F (+120°C) • Hose may be sterilized with +266°F (+130°C) steam for 30 minutes or with 5% soda solution • Liquid food suction and discharge • Milk tanker collection and unloading – ideal for reel applications
CONSTRUCTION Tube – White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free Reinforcement – High tensile textile cords with embedded steel helix wire Cover – Gray NBR/PVC abrasion, weather & ozone resistant
Multi Food S & D Hose
GENERAL APPLICATIONS • Alcoholic beverages – wine, beer & spirits up to 75% alcohol content and 150 proof • Fat foods-perfect for animal fats and any vegetable oils • Hose may be sterilized with +266°F (+130°C) steam for 30 minutes or with 5% soda solution • Hot food-constant operations: liquid food up to +230°F (+110°C), fat foods up to +248°F (+120°C) • Liquid food suction and discharge • Milk tanker collection and unloading-ideal for reel applications
CONSTRUCTION Tube – White NBR rubber specially compounded to satisfy the highest food industry standards. Compliant to FDA and 3A standards. Phthalate free Reinforcement – High tensile textile cords with embedded steel helix wire Cover – White NBR/PVC abrasion, weather and ozone resistant

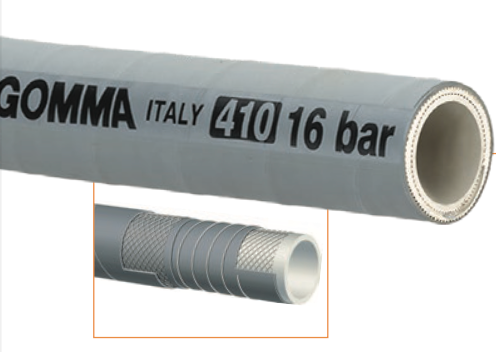

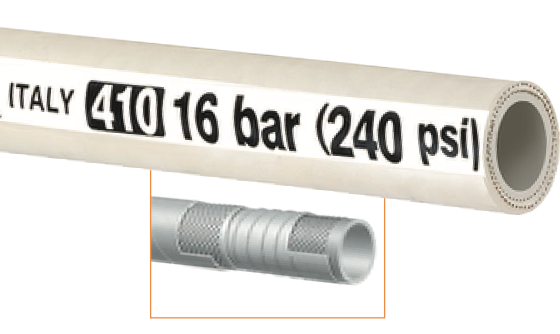

240 PSI Food & Beverage S & D Hose – Crush Resistant
GENERAL APPLICATIONS • Food and alcoholic beverage suction and discharge • Hose may be sterilized with +266°F (+130°C) steam for 30 minutes or with 5% soda solution • Specially designed for wine, beer and spirits, up to 95% alcohol content (190 proof)
CONSTRUCTION Tube – White nontoxic CIIR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords with embedded PET helix Cover – White EPDM – abrasion and ozone resistant
240 PSI Food & Beverage S & D Hose – Crush Resistant
GENERAL APPLICATIONS • Food and alcoholic beverage suction and discharge. Specially designed for wine, beer and spirits, up to 95% alcohol content (190 proof) • Hose may be sterilized with steam at +266°F (+130°C) for 30 minutes or with 5% soda solution Not recommended for dry abrasive materials
CONSTRUCTION Tube – White nontoxic CIIR. Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords with embedded PET helix Cover – Gray EPDM – abrasion and ozone resistant

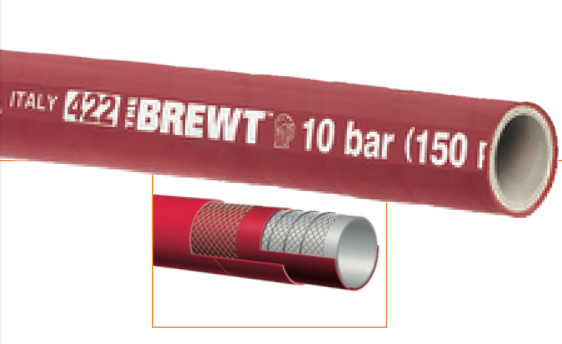

Liquid S & D Brewery Hose
GENERAL APPLICATIONS • Brewery suction and discharge • Liquid food and alcoholic beverage suction and discharge, up to 95% alcohol content (190 • Versatile hose for applications requiring superb flexibility and light weight, while still maintaining high strength and durability proof)
CONSTRUCTION Tube – White Chlorobutyl – meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords with specially designed embedded helix wires Cover – Red smooth NR/EPDM blend for abrasion and ozone resistance

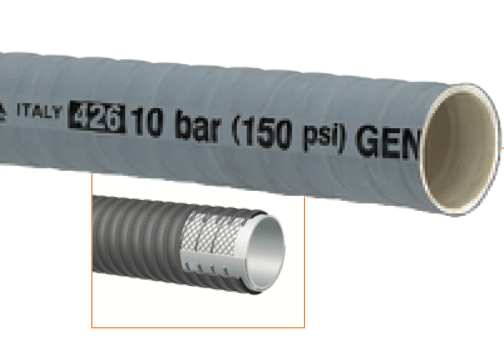

150 PSI Gray Food S & D Hose
GENERAL APPLICATIONS • Liquid, fatty, oily food and alcoholic beverage, max 75% alcohol content (150 proof), suction and discharge • Hose may be sterilized with 5% soda solution • Not recommended for dry abrasive materials
CONSTRUCTION Tube – White NBR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Corrugated gray NBR/PVC – abrasion, ozone and oil resistant

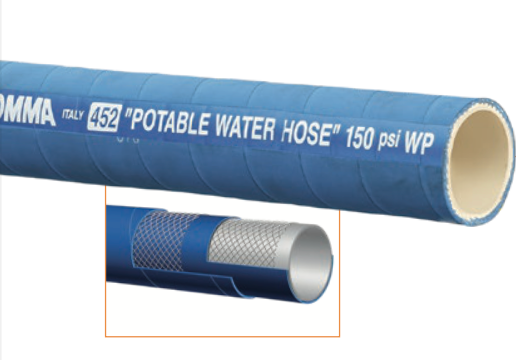

150 PSI Potable Water Hose* * HOSE IS NOT NSF APPROVED
GENERAL APPLICATIONS • Discharge of water used for drinking • Most often used for temporary water lines in construction and industrial applications
CONSTRUCTION Tube – White NR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords – 2 ply Cover – Blue SBR/EPDM blend – abrasion and ozone resistant

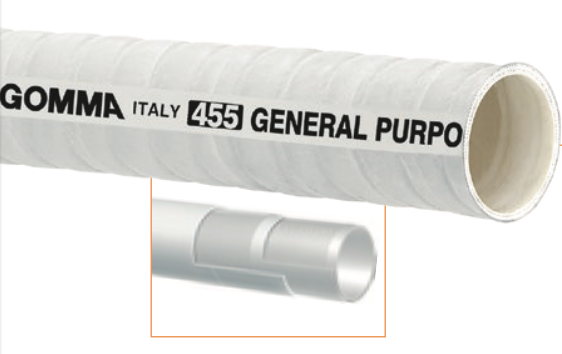

150 PSI Food Discharge Hose
GENERAL APPLICATIONS • Discharge of liquid, fatty, oily foods and alcoholic beverages, max 75% alcohol content (150 proof) • Hose may be sterilized with 5% soda solution • Not recommended for dry abrasive materials
CONSTRUCTION Tube – White NBR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords Cover – White NBR/PVC blend – abrasion, ozone and oil resistant

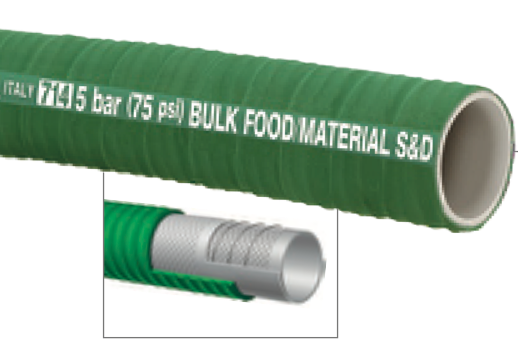

Material Handling Hose FDA Grade
GENERAL APPLICATIONS • For suction or discharge of wet or dry abrasive materials • Suitable for handling materials for human consumption
CONSTRUCTION Tube – Abrasion resistant, natural white gum rubber 3/16" thick. Meets FDA requirements Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire and static wire Cover – Green corrugated SBR/EPDM blend rubber

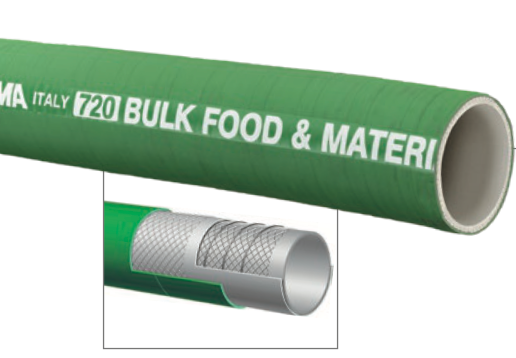

Bulk Food S & D Hose
GENERAL APPLICATIONS • Designed for grains, fl our and pellet transfer • Suction and discharge of wet or dry abrasive materials
CONSTRUCTION Tube – Abrasion resistant, natural white gum rubber 3/16" thick – Meets FDA requirements Reinforcement – Spiraled high tensile textile cords with fl exible steel helix wire and static wire Cover – Green SBR/EPDM blend – abrasion and ozone resistant

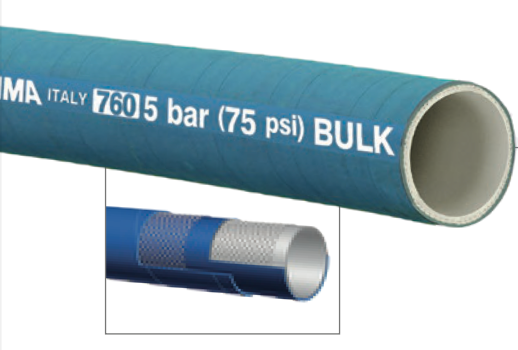

75 PSI Dry Bulk Food Discharge Hose
GENERAL APPLICATIONS • Discharge or delivery of dry bulk food products
CONSTRUCTION Tube – 3/16" white NR – abrasion resistant – Meets FDA requirements Reinforcement – Spiraled high tensile textile cords with static wire Cover – Blue SBR/EPDM – abrasion and ozone resistant

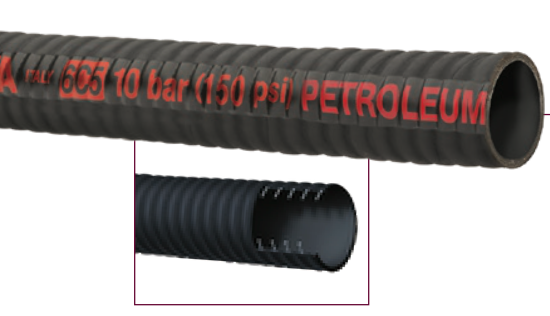

150 PSI Corrugated Tank Truck Hose
GENERAL APPLICATIONS • For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content • Not SAE100R4 rated
CONSTRUCTION Tube – Black Conductive NBR Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Black corrugated CR – abrasion, ozone, and hydrocarbon resistant

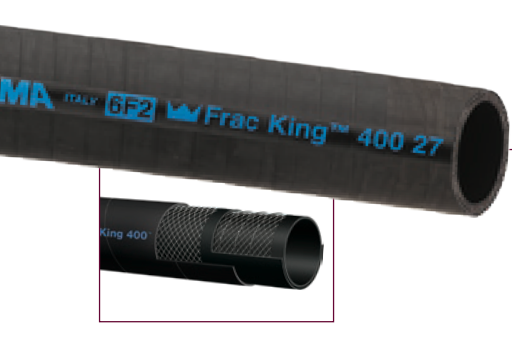

High Performance Frac Fluid S & D Hose
GENERAL APPLICATIONS • Durable and versatile hose for a variety of oil and gas fi eld applications involving hydraulic frac fl uids, abrasive slurries, wastewater, lubricants, water/sand and other high pressure solutions • Simulation fl uids used in the well drilling process
CONSTRUCTION Tube – Conductive nitrile (NBR) meeting ARPM Class A (high oil resistance) rating Reinforcement – Helical wire surrounded by textile cords Cover – Highly abrasive-resistant SBR compound for abrasion and ozone resistance

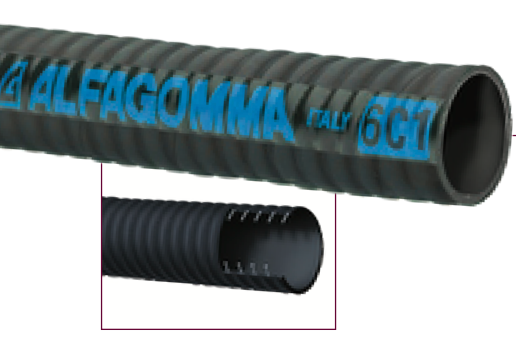

150 PSI Corrugated Oil Rigger/Oil Field-Frac Tank Hose
GENERAL APPLICATIONS • Frac solutions and slurries • Handling crude oil • Oil fi eld vacuum tank service Note: For applications up to 35% aromatics. Not for use with refi ned petroleum products
CONSTRUCTION Tube – Black Nitrile – PVC blend, limited oil resistance, for oil fi eld use Reinforcement – High tensile textile cords with fl exible steel helix wire Cover – Black corrugated SBR – abrasion, ozone, limited oil resistance

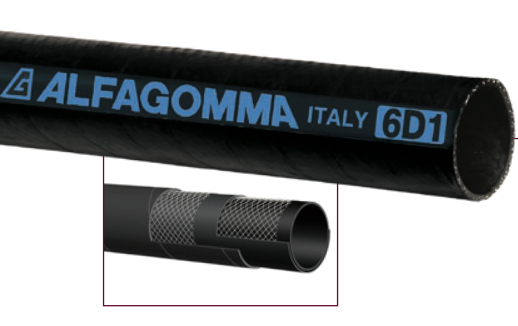

400 PSI Oil Rigger / Frac Discharge Hose
GENERAL APPLICATIONS • Crude oil delivery in oil fi eld and gas exploration • Fracking fl uids • Liquid mud
CONSTRUCTION Tube – Black synthetic elastomer Reinforcement – High tensile textile cords Cover – Black synthetic elastomer – abrasion, oil and ozone resistant

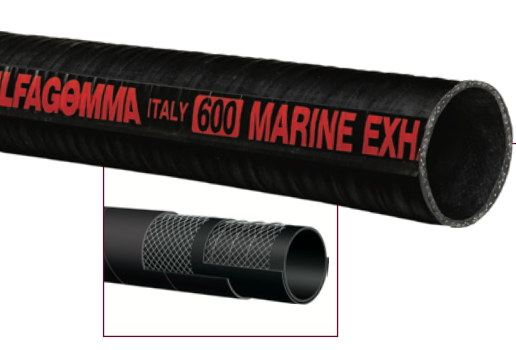

Hard Wall Marine Exhaust Hose USCG/SAE J1527 A2/B2
GENERAL APPLICATIONS • Fuel, oil and hydraulic fl uids suction and discharge • Offers maximum fl exibility • Suitable for exhaust gas from water cooled stationary or marine diesel engines
CONSTRUCTION Tube – Black NBR – exhaust gas, fuel and fi re resistant Reinforcement – High tensile textile cords with fl exible steel helix wire – 4 ply Cover – Black NBR/PVC blend – abrasion, ozone, hydrocarbon and fi re resistant

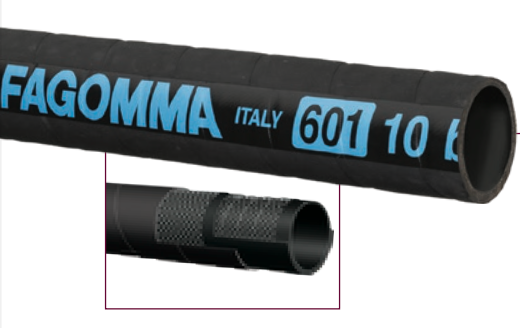

150 PSI Oil Rigger/Oil Field-Frac Tank Hose
GENERAL APPLICATIONS • Frac solutions and slurries • Handling crude oil • Oil fi eld vacuum tank service Note: For applications up to 35% aromatics. Not for use with refi ned petroleum products
CONSTRUCTION Tube – Black Nitrile – PVC blend, limited oil resistance, for oil fi eld use Reinforcement – High tensile textile cords with fl exible steel helix wire Cover – Black SBR – abrasion, ozone, limited oil resistance

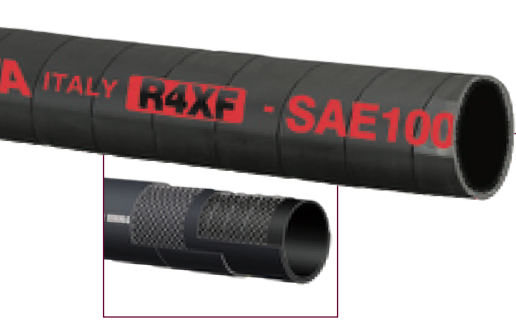

Flexor – SAE 100 R4 Oil Return Hose
GENERAL APPLICATIONS • Low pressure return lines or suction lines with half the bend radius requirements of SAE J517 100 R4 • Service with petroleum based hydraulic fl uids, water-glycol and water fi re resistant hydraulic fl uids, oil, lubricants, crude oil, fuel oils and water with a maximum 50% aromatics content
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile cords with fl exible steel helix wire Cover – Black CR – oil, fuel, weather, ozone and abrasion-resistant
150 PSI Black Petroleum S & D Hose
GENERAL APPLICATIONS • For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile spiral cords with flexible steel helix wire Cover – Black CR – abrasion, ozone and hydrocarbon resistant

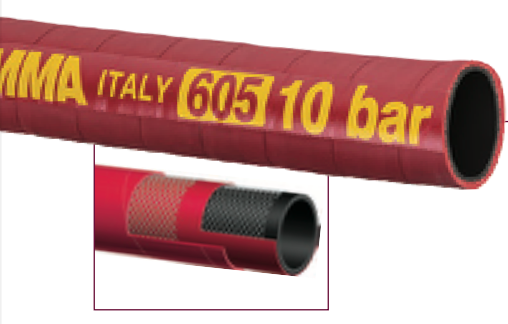

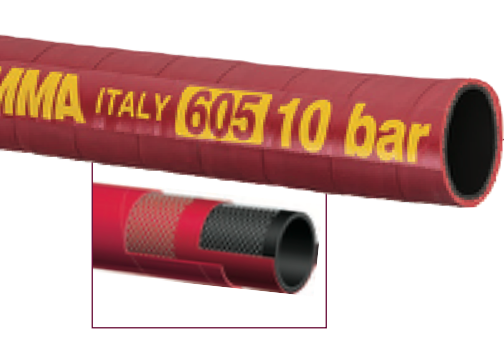

150 PSI Red Petroleum S & D Hose
GENERAL APPLICATIONS • For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Red CR – abrasion, ozone and hydrocarbon resistant

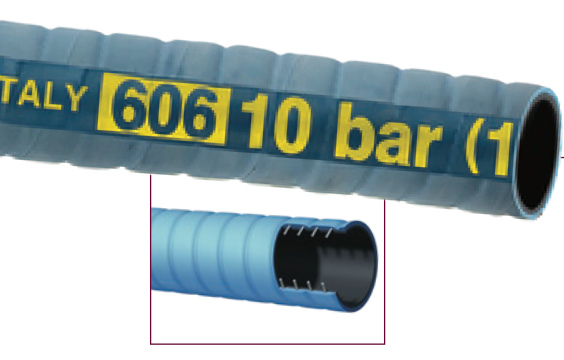

150 PSI Corrugated Petroleum S & D – Arctic Hose
GENERAL APPLICATIONS • For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content • Can handle glycols • Where extreme fl exibility is needed in low temperature
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Blue CR corrugated – abrasion, ozone and hydrocarbon resistant

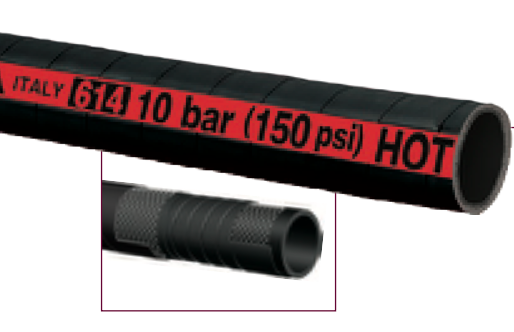

150 PSI Hot Tar & Asphalt S & D Hose
GENERAL APPLICATIONS • Conveying hot non-FDA oils • Hot tar and asphalt suction and discharge service
CONSTRUCTION Tube – Black NBR – hot tar and asphalt resistant Reinforcement – High tensile textile cords with steel helix wire Cover – Black CSM – abrasion, ozone and hot tar resistant

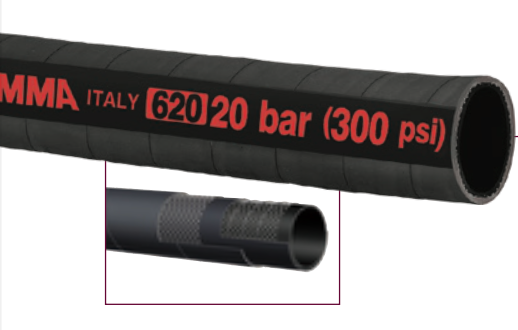

300 PSI Black Fuel & Oil S & D Hose
GENERAL APPLICATIONS • Designed for heavy duty applications • Fuel and oil suction and discharge for up to 50% aromatic content • Suitable for diesel fuels and oils
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile cords with steel helix wire and static wire Cover – Black conductive CR – abrasion, ozone, hydrocarbon, and UV resistant

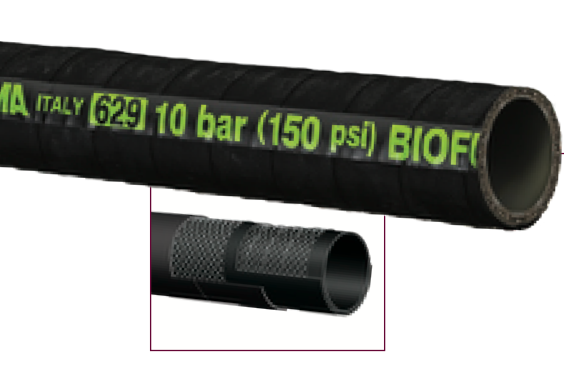

150 PSI Black Biofuel Petroleum S & D Hose
GENERAL APPLICATIONS • Can handle ethanols, diesel fuels and diesel oils • For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels – up to E98 and B100* with up to 60% aromatic content at ambient temperature
CONSTRUCTION Tube – Black conductive synthetic rubber Reinforcement – High tensile textile cords with steel helix wire Cover – Black specially-blended neoprene – added resistance against abrasion, ozone and hydrocarbons

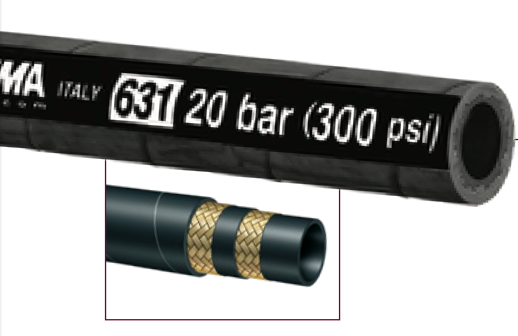

300 PSI Hot Tar & Asphalt Applicator Delivery Hose
GENERAL APPLICATIONS • Hot tar and asphalt delivery service
CONSTRUCTION Tube – Black NBR – hot tar and asphalt resistant Reinforcement – High tensile steel wire braids Cover – Black CR – abrasion, ozone, hydrocarbon and fi re resistant

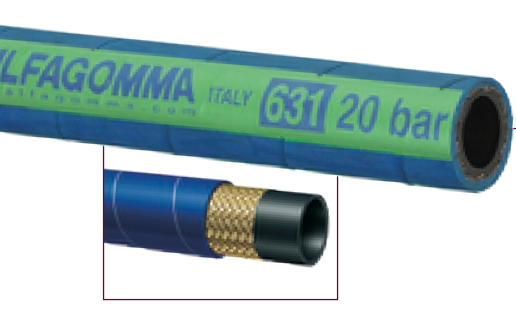

300 PSI Hydrocarbon Drain Hose
GENERAL APPLICATIONS • Drain hose for residue from cleaning storage tanks and refi ning hydrocarbons
CONSTRUCTION Tube – Black NBR-hydrocarbon resistant Reinforcement – High tensile steel wire braids Cover – Blue CR – abrasion and hydrocarbon resistant
Extra Flexible SAE 100R4 Oil Return Hose
GENERAL APPLICATIONS • 100R4, service with petroleum based hydraulic fl uids, water-glycol and water-fi re resistant hydraulic fl uids, oil, lubricants, crude oil, fuel oils and water • Low pressure return lines or suction lines with half the bend radius requirements of SAE J517
CONSTRUCTION Tube – Black, conductive NBR Reinforcement – Textile reinforced with four spiral wire helix to prevent collapsing Cover – Black CR… oil, fuel, weather, ozone and abrasion-resistant
150 PSI Red Petroleum S & D Hose
GENERAL APPLICATIONS • For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content
CONSTRUCTION Tube – Black conductive NBR Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Red CR – abrasion, ozone and hydrocarbon resistant

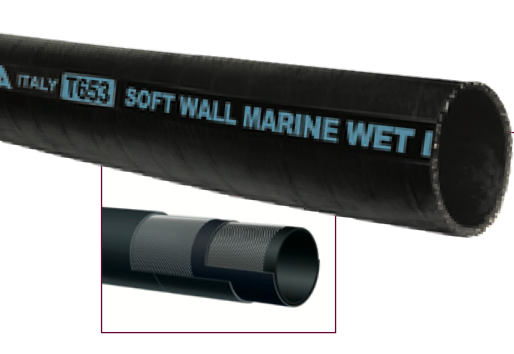

Soft Wall Marine Exhaust Hose SAE J2006 R1
GENERAL APPLICATIONS • Marine wet exhaust and bilge pump connections Not for use with oils and fuels
CONSTRUCTION Tube – Black Synthetic Rubber Reinforcement – High tensile textile cords – 2 ply Cover – Black Synthetic Rubber – abrasion, ozone and hydrocarbon resistant

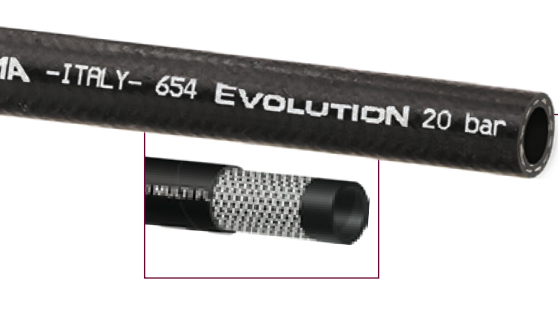

Small Engine Fuel Transfer Hose SAE J30R7
GENERAL APPLICATIONS • Boat engines • Designed for small engine marine and automotive fuel and oil transfer applications • Generators • Lawnmowers • Pressure washers • Snowmobiles
CONSTRUCTION Tube – Conductive Nitrile (NBR) Reinforcement – High tensile textile braids Cover – Conductive Neoprene (CR) hydrocarbon resistant

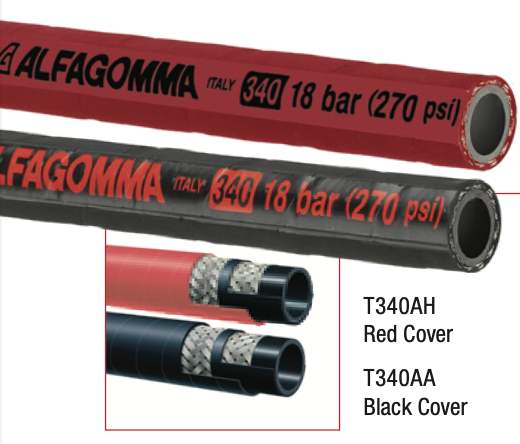

270 PSI EPDM Braided Steam Hose
GENERAL APPLICATIONS • High pressure industrial equipment cleaning at refi neries, processing plants and shipyards • Saturated steam applications up to 270 PSI and 410°F (+210°C) Proper draining of steam hose after each use will increase service life. Use with super heated steam will shorten hose life. Not recommended for washdown applications where detergent or oils are present.
CONSTRUCTION Tube: Black extruded EPDM – heat-resistant. Not for steam cleaner use. Reinforcement – Single high tensile steel wire braid (1/2" Size), Two high tensile steel wire braids for 3/4" and above Cover – Heat-resistant red or black EPDM featuring pin-pricking for venting and wrapped cover fabric impression

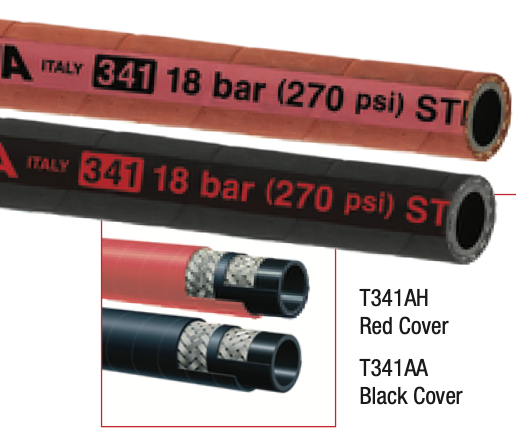

270 PSI Chlorobutyl Braided Steam Hose
GENERAL APPLICATIONS • The transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications Proper draining of steam hose after each use will increase service life Not recommended for washdown applications where detergent or oils are present.
CONSTRUCTION Tube: Black extruded CIIR – heat-resistant. Not for steam cleaner use Reinforcement: Single high tensile steel wire braids (1/2" size), Two high tensile steel wire braids for 3/4" and above Cover: Red or black EPDM – heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting

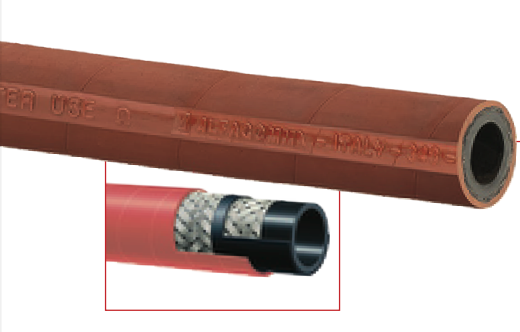

270 PSI Braided Refinery Steam Hose
GENERAL APPLICATIONS • Saturated steam in applications where an oil resistant cover is needed Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life. Not recommended for washdown applications where detergent or oils are present.
CONSTRUCTION Tube: Black extruded EPDM – heat-resistant. Not for steam cleaner use. Reinforcement: High tensile steel wire braids Cover: Red special compound - heat, oil-resistant, ozone and hydrocarbon resistant. Pin-pricked cover to allow venting. (Black version available upon request with minimum order quantities.)

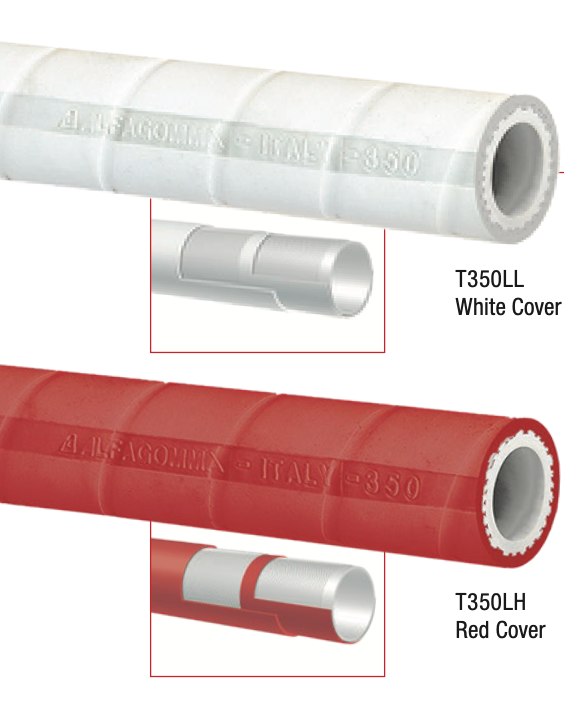

225 PSI Premium Paper Mill/Creamery Wash Down Hose – No Nozzle
GENERAL APPLICATIONS • For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants
CONSTRUCTION Tube – White EPDM. Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords Cover – Red or white EPDM – heat, abrasion and ozone resistant

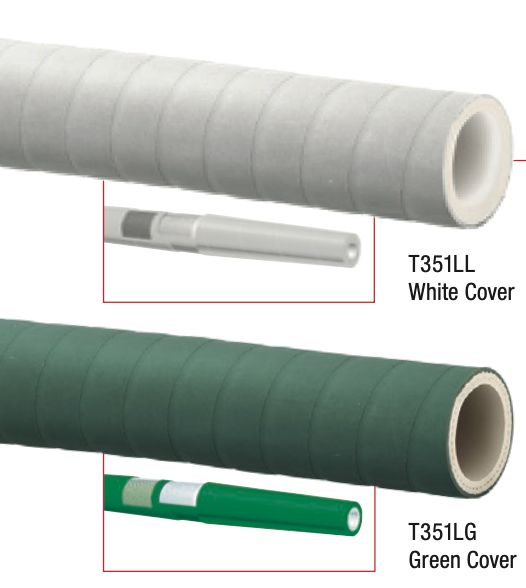

150 PSI EPDM Premium Paper Mill/Creamery Wash Down Hose with Tapered Nozzle
GENERAL APPLICATIONS • For general wash down service, using hot and cold water in paper mills and in food and dairy plants
CONSTRUCTION Tube – White EPDM. Meets FDA and 3A (18-03) requirements Reinforcement – Two ply, high tensile textile cords Cover – White or green EPDM – heat, abrasion and ozone resistant

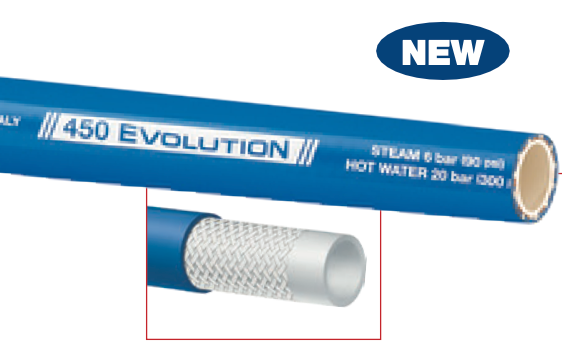

AGCLEAN Hot Water/Steam Washdown Hose with Fat Resistant Cover
GENERAL APPLICATIONS • Saturated steam and hot water washdown hose for the food and dairy industry. Resistant to animal and vegetable fats. Special construction for reeling applications
CONSTRUCTION Tube – White NBR – FDA approved Reinforcement – High tensile textile braids Cover – Blue NBR/PVC – abrasion, ozone and oil resistant. Non-Marking and Fat-resistant.

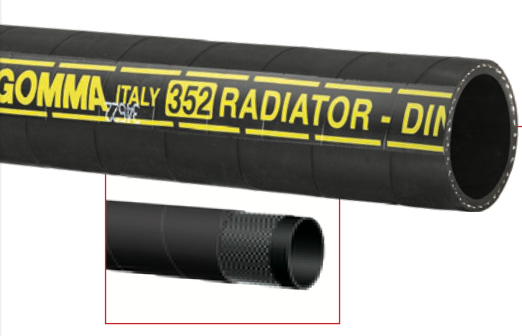

75 PSI Radiator Hose
GENERAL APPLICATIONS • Radiator hose
CONSTRUCTION Tube – Black EPDM Reinforcement – Two ply, high tensile textile cords – 2 ply all sizes. Not for vacuum Cover – Black EPDM – heat, abrasion and ozone resistant

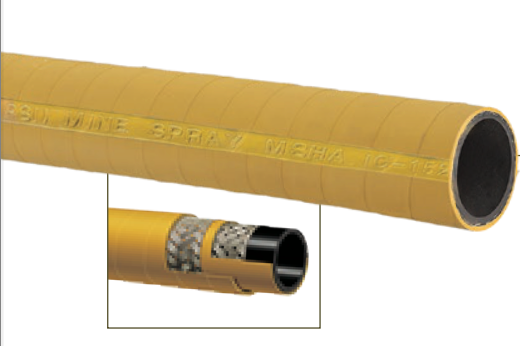

1000 PSI Braided MSHA Mine Spray Hose
GENERAL APPLICATIONS • Underground mine water spray for dust control • Usable on continuous mining machinery
CONSTRUCTION Tube – Black Extruded SBR/NBR blend – oil mist resistant Reinforcement – High tensile steel wire braids Cover – Yellow SBR/NBR blend – abrasion, ozone, hydrocarbon and fi re resistant – pin pricked

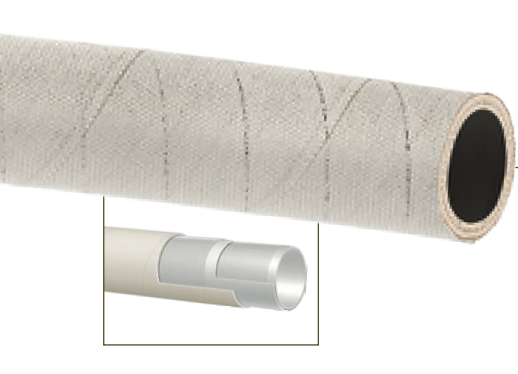

300 PSI Furnace Door Coolant Hose
GENERAL APPLICATIONS • To convey cooling water to furnace doors in steel mills, glass plants, foundries • Where the hose is subjected to high temperatures and splashes of white-hot molten metals or glass
CONSTRUCTION Tube – White EPDM, non-conductive Reinforcement – High tensile textile cords Cover – Beige EPDM – fi re and heat resistant, non-conductive resin-coated dust-free fi berglass cover

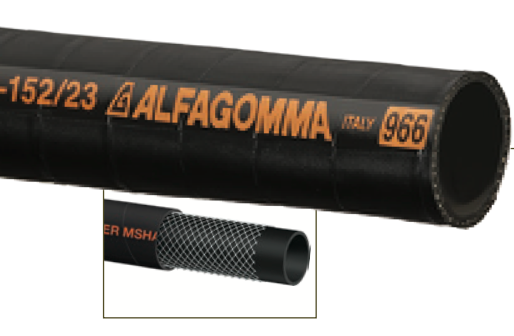

Cable Protection Hose MSHA Approved
GENERAL APPLICATIONS • Cable protection in underground mining operations • Suitable for light duty air and water applications up to 75 psi working pressures
CONSTRUCTION Tube – Black conductive SBR/NR blend Reinforcement – High tensile textile cords with 4 spiral reinforcement Cover – Black conductive SBR compounds providing abrasion, ozone and fl ame resistance
Thermoplastic hose products for food-grade transfer, industrial material handling, suction, discharge, ducting, and oil and gas applications.

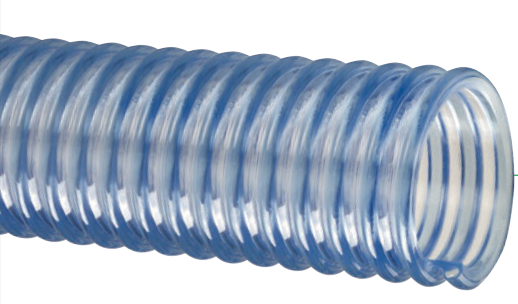

Food Grade, PVC Material Handling Hose
GENERAL APPLICATIONS • Food grade liquids such as potable water, beer, wine and juice • Food grade material handling – standard duty • Pharmaceutical product transfer • Plastic processing equipment • Pneumatic conveying equipment • Poultry processing
CONSTRUCTION PVC tube with rigid PVC helix

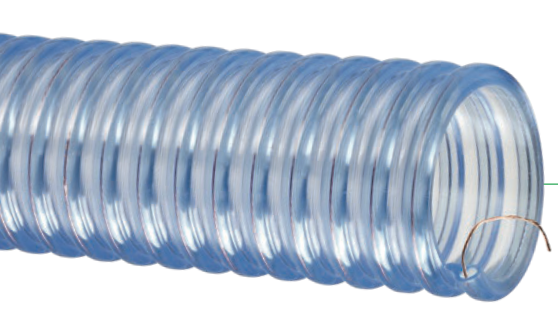

Food Grade, PVC Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Food grade liquids such as potable water, beer, wine and juice • Food grade material handling – standard duty • Pharmaceutical product transfer • Plastic processing equipment • Pneumatic conveying equipment • Poultry processing
CONSTRUCTION PVC tube with rigid PVC helix and grounding wire

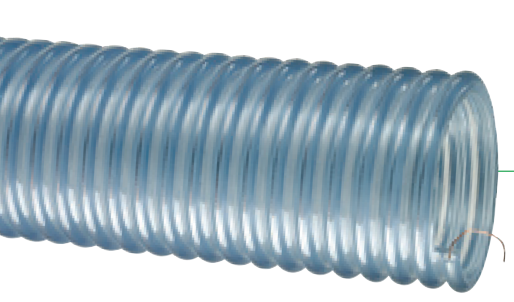

Heavy-Duty Food Grade, Polyurethane Lined, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Food grade material handling - heavy duty abrasive • Plastic processing equipment • Pneumatic conveying equipment • Pharmaceutical product transfer
CONSTRUCTION PVC cover with polyurethane liner, rigid PVC helix and grounding wire

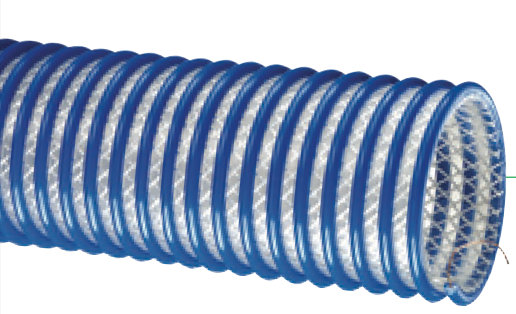

Heavy-Duty Food Grade, Polyurethane, Fabric Reinforced, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Bulk truck and railcar unloading • Food grade material handling – heavy duty abrasive • Suction and discharge
CONSTRUCTION Extra thick double-ply polyurethane tube, polyester fabric reinforcement, rigid PVC helix and grounding wire

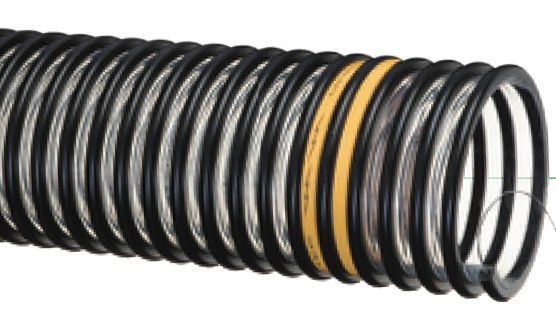

Heavy-Duty Food Grade, Charge Reducing, Polyurethane Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Bulk truck and railcar unloading • Fly ash collection • Food grade material handling – heavy duty abrasive • Milling machine scrap recovery • Pharmaceutical product transfer • Plastic processing equipment • Pneumatic conveying equipment
CONSTRUCTION Charge reducing polyurethane tube, rigid helix and grounding wire (patent pending)

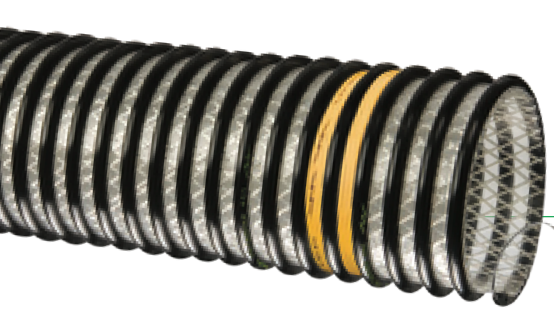

Heavy-Duty Food Grade, Charge Reducing Polyurethane, Fabric Reinforced, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Bulk truck and railcar unloading • Food grade material handling – heavy duty abrasive • Milling machine scrap recovery • Plastic processing equipment • Pneumatic conveying equipment • Suction and discharge
CONSTRUCTION Charge reducing polyurethane tube, polyester fabric reinforcement, rigid helix and grounding wire (patent pending)

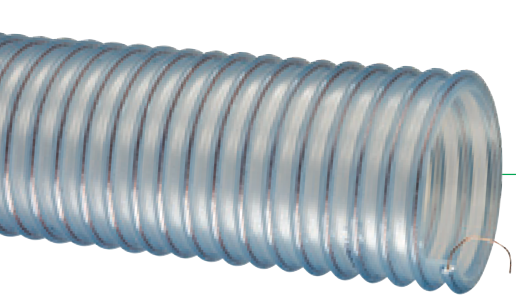

Heavy-Duty Food Grade, Polyurethane, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Food grade material handling - heavy duty abrasive • Plastic processing equipment • Pneumatic conveying equipment • Pharmaceutical product transfer
CONSTRUCTION Polyurethane tube with rigid PVC helix and grounding wire

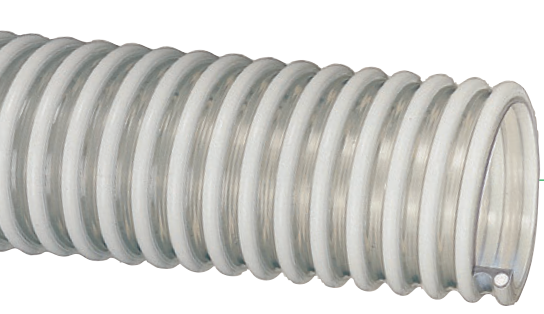

Food Grade, PVC Material Handling Hose with Charge Reducing Additives
GENERAL APPLICATIONS • Food grade material handling – standard duty • Pharmaceutical product transfer • Plastic processing equipment • Pneumatic conveying equipment
CONSTRUCTION Charge reducing PVC tube with rigid PVC helix

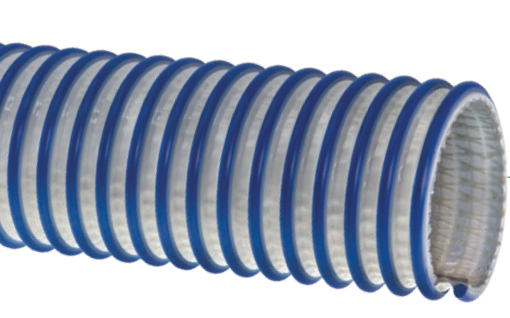

Potable Water Suction and Discharge Hose
GENERAL APPLICATIONS • Transfer of potable water in residential, oilfi eld, airport and marine (ship) applications • Ice transfer • Food grade liquids such as beer, wine, and juice
CONSTRUCTION Double-ply PVC tube, polyester fabric reinforcement and rigid PVC helix

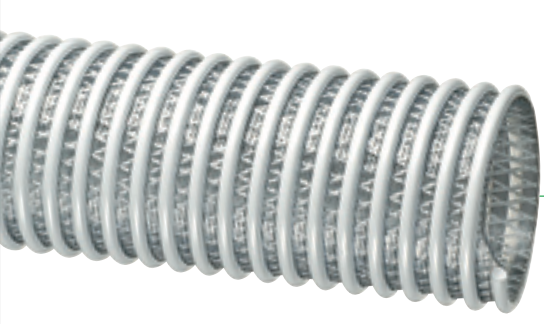

Food Grade, PVC, Fabric Reinforced, Liquid Suction & Discharge Hose
GENERAL APPLICATIONS • Food grade liquids such as wine, beer and juice • Ice transfer • Suction and discharge
CONSTRUCTION Double-ply PVC tube, polyester fabric reinforcement and rigid PVC helix

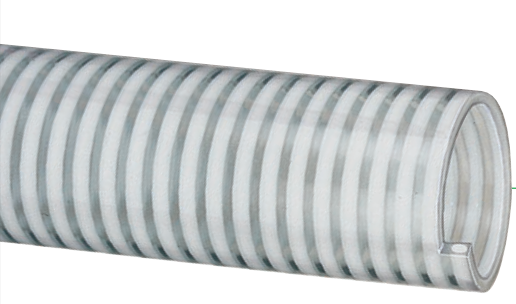

Food Grade, PVC, Liquid Suction Hose
GENERAL APPLICATIONS • Food grade liquids such as milk, beer, wine and juice • Ice transfer • Milk and dairy product transfer
CONSTRUCTION PVC tube with rigid PVC helix

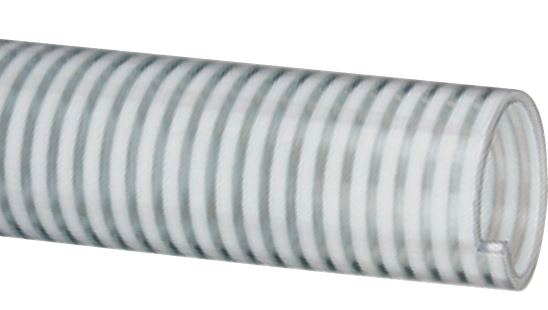

Low Temperature, Food Grade, PVC, Liquid Suction Hose
GENERAL APPLICATIONS • Food grade liquids such as milk, beer, wine and juice • Ice transfer • Milk and dairy product transfer
CONSTRUCTION PVC tube with rigid PVC helix

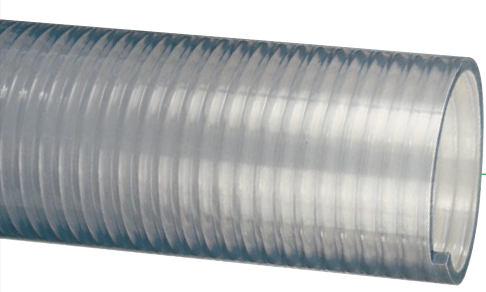

Heavy-Duty, Food Grade, PVC, Suction Hose
GENERAL APPLICATIONS • Food grade liquids such as milk, beer, wine and juice • Ice transfer • Milk and dairy product transfer • Poultry processing
CONSTRUCTION PVC tube with rigid PVC helix

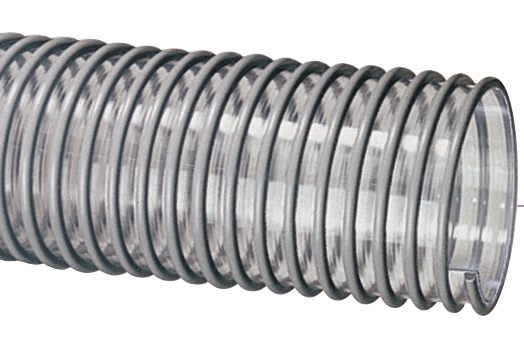

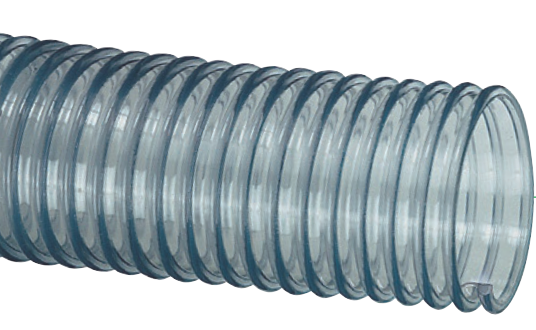

Food Grade, PVC, Ducting/Light Material Handling Hose
GENERAL APPLICATIONS • Ducting, ventilation and fume removal • Food grade blower and ducting systems • Material handling – light duty • Pharmaceutical product transfer
CONSTRUCTION PVC tube with rigid PVC helix

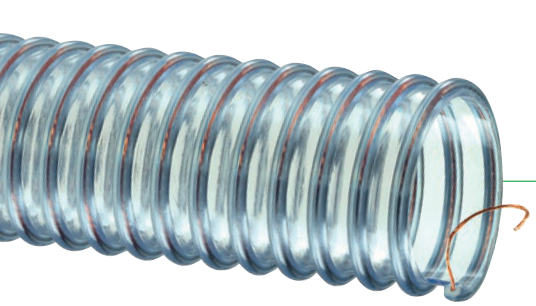

Food Grade, PVC, Ducting/Light Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Ducting, ventilation and fume removal • Food grade blower and ducting systems • Material handling – light duty • Pharmaceutical product transfer
CONSTRUCTION PVC tube with rigid PVC helix and grounding wire

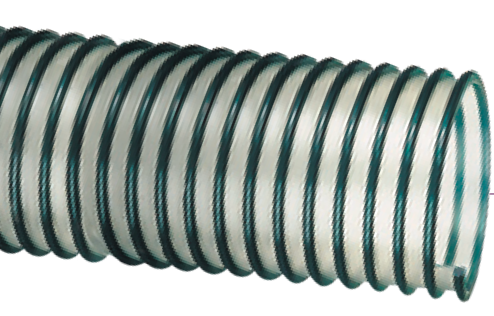

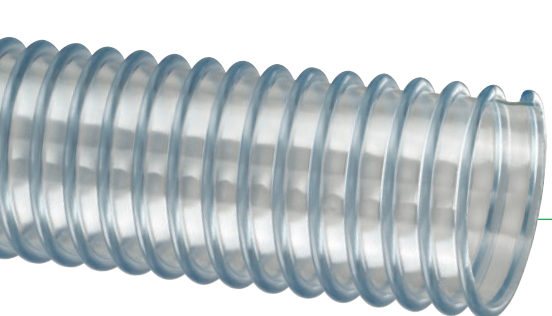

Food Grade, Polyurethane Ducting/Light Material Handling Hose
GENERAL APPLICATIONS • Ducting, ventilation and fume removal • Dust collection • Food grade blower and ducting systems • Food grade material handling – standard duty • Pharmaceutical product transfer
CONSTRUCTION Polyurethane (TPU) tube with rigid PVC helix

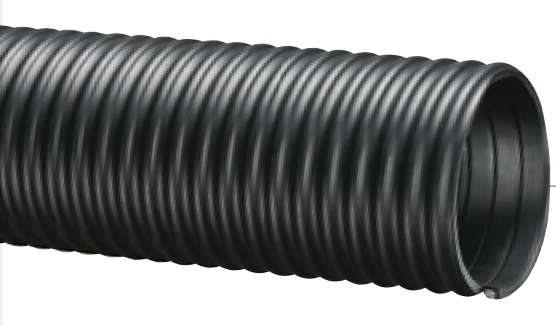

Heavy-Duty, Rubber Blend Wet or Dry Material Handling Hose
GENERAL APPLICATIONS • Fly ash collection • Grain Handling • Hydro excavation • Industrial vacuum equipment • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Sewer truck boom hose • Shot blast recovery • Slurry handling
CONSTRUCTION Blended rubber tube with rigid PVC helix

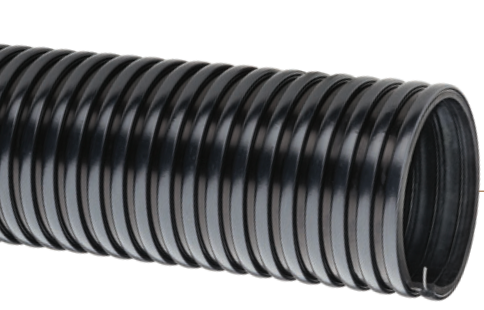

Wire Reinforced EPDM Wet or Dry Material Handling Hose
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Fly ash collection • Hydroexcavation • Industrial vacuum equipment • Material chutes • Milling machine scrap recovery • Sewer truck boom hose • Slurry handling
CONSTRUCTION EPDM tube and polyethylene helix with steel helical wire

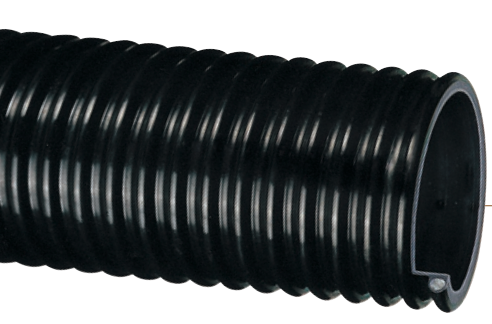

Heavy-Duty, Polyurethane Lined, Wet or Dry Material Handling Hose
GENERAL APPLICATIONS • Fly ash collection • Hydro excavation • Industrial vacuum equipment • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Sewer truck boom hose • Shot blast recovery • Slurry handling
CONSTRUCTION Black PVC cover with ether polyurethane liner and rigid PVC helix

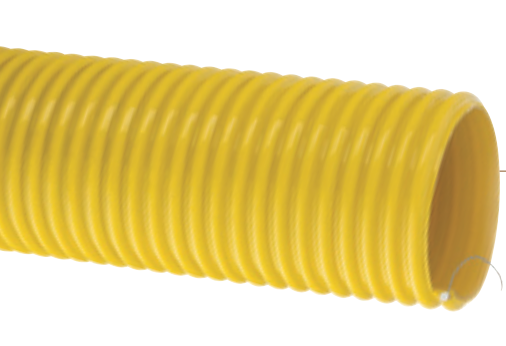

Heavy Duty Polyurethane Lined Wet or Dry Material Handling Hose with High UV Resistance
GENERAL APPLICATIONS • Hydroexcavation • Industrial vacuum equipment • Material handling – heavy duty abrasive • Sewer truck boom hose • Slurry handling
CONSTRUCTION PVC cover with ether polyurethane liner, PVC helix and grounding wire

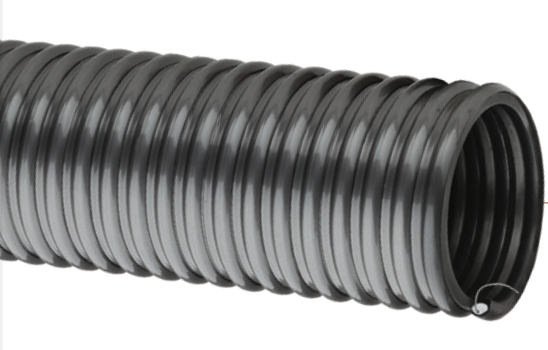

Extremely Heavy-Duty, Polyurethane Lined, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Fly ash collection • Industrial Vacuum Equipment • Material chutes • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Shot blast recovery
CONSTRUCTION PVC cover with extra thick polyurethane liner, rigid PVC helix and grounding wire

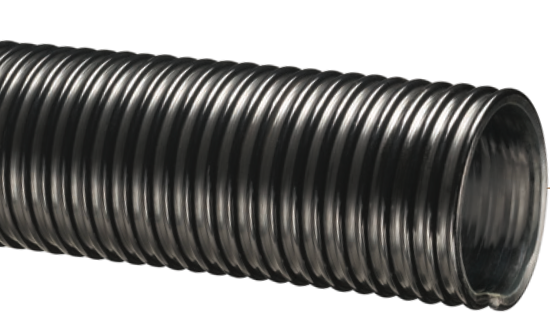

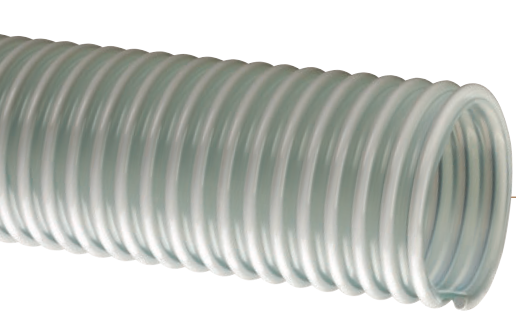

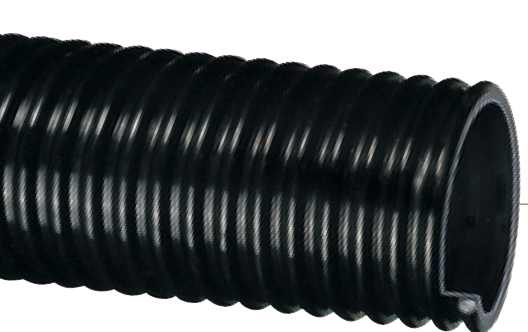

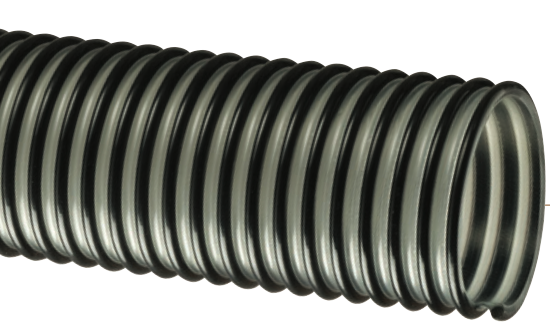

Heavy-Duty, Polyurethane Lined, Material Handling Hose
GENERAL APPLICATIONS • Agricultural dry fertilizers • Air seeder lines • Fly ash collection • Industrial vacuum equipment • Material chutes • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Shot blast recovery
CONSTRUCTION PVC cover with polyurethane liner and rigid PVC helix

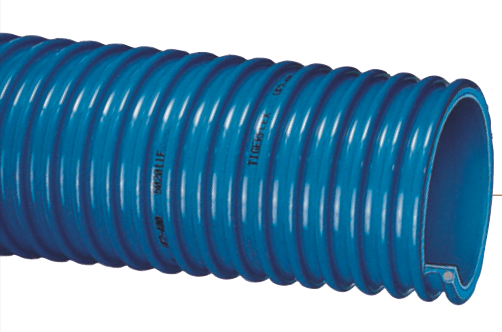

Extra Heavy-Duty, Polyurethane Lined, Material Handling Hose
GENERAL APPLICATIONS • Fly ash collection • Industrial vacuum equipment • Material chutes • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Shot blast recovery
CONSTRUCTION PVC cover with polyurethane liner and rigid PVC helix
Heavy-Duty, Polyurethane Lined, Material Handling Hose
GENERAL APPLICATIONS • Agricultural dry fertilizer • Air seeder lines • Industrial vacuum equipment • Material handling – heavy duty abrasive • Milling machine scrap recovery • Plastic processing equipment • Shot blast recovery
CONSTRUCTION PVC cover with polyurethane liner and rigid PVC helix
Heavy-Duty, Polyurethane Lined, Material Handling Hose
GENERAL APPLICATIONS • Agricultural dry fertilizers • Air seeder lines • Fly ash collection • Industrial vacuum equipment • Material handling – heavy duty abrasive • Milling machine scrap recovery • Rock, gravel, sand and crushed concrete vacuuming • Shot blast recovery
CONSTRUCTION PVC cover with polyurethane liner and rigid PVC helix

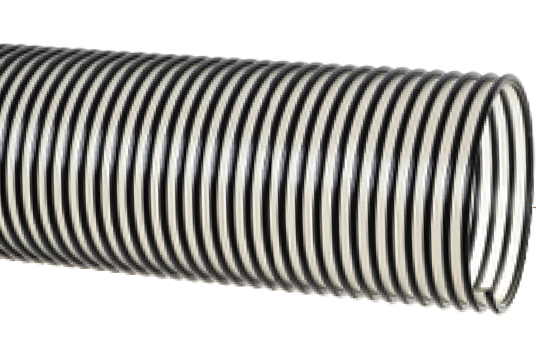

Medium-Duty Polyurethane Lined, Ducting/Material Handling Hose
GENERAL APPLICATIONS • Agricultural dry fertilizer • Air seeder lines • Dust control • Material handling – medium duty • Wand hose
CONSTRUCTION PVC cover with ester polyurethane (TPU) liner and rigid PVC helix

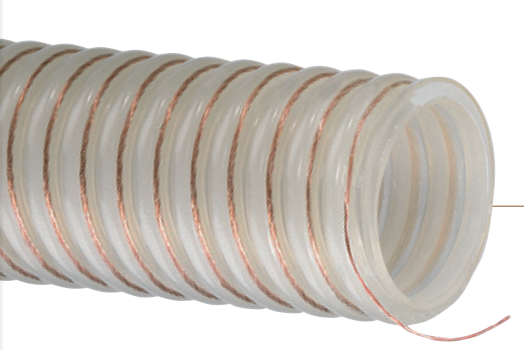

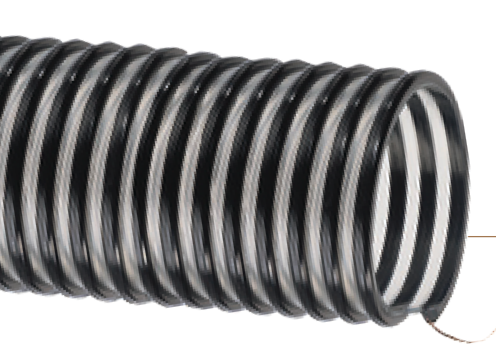

Heavy-Duty, Polyurethane, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Dust collection • Material handling – heavy duty abrasive • Milling machine scrap recovery • Plastic processing equipment
CONSTRUCTION Single-ply polyurethane tube with rigid PVC helix and grounding wire
Heavy-Duty, Polyurethane, Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Material handling – heavy duty abrasive • Plastic processing equipment
CONSTRUCTION Polyurethane tube with rigid polypropylene helix
Heavy-Duty, Polyurethane Lined, Material Handling Hose
GENERAL APPLICATIONS • Material handling – heavy duty abrasive • Mulch, bark, wood chips and other surfacing material delivery • Soil, seed and compost delivery
CONSTRUCTION PVC cover with polyurethane liner and rigid PVC helix

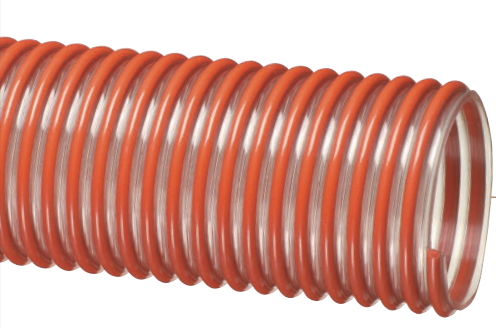

Heavy-Duty, PVC, Material Handling Hose
GENERAL APPLICATIONS • Material handling – standard duty • Mulch, bark, wood chips and other surfacing material delivery • Soil, seed and compost delivery
CONSTRUCTION PVC tube and rigid PVC helix

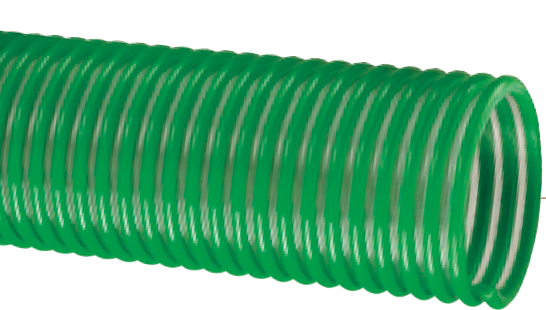

Heavy-Duty, Low Temperature, PVC, Material Handling Hose
GENERAL APPLICATIONS • Material handling – standard duty • Mulch, bark, wood chips and other surfacing material delivery • Soil, seed and compost delivery
CONSTRUCTION PVC tube and rigid PVC helix

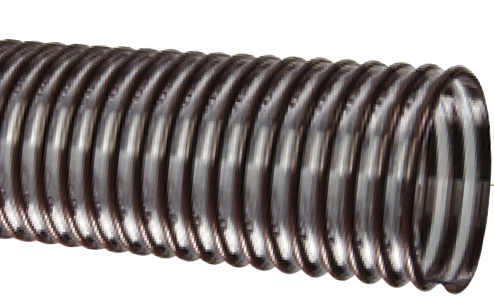

Standard-Duty, PVC, Material Handling Hose
GENERAL APPLICATIONS • Lawn and leaf collection • Material handling – standard duty • Mulch, bark, wood chips and other surfacing material delivery • Soil, seed and compost delivery
CONSTRUCTION PVC tube with rigid PVC helix

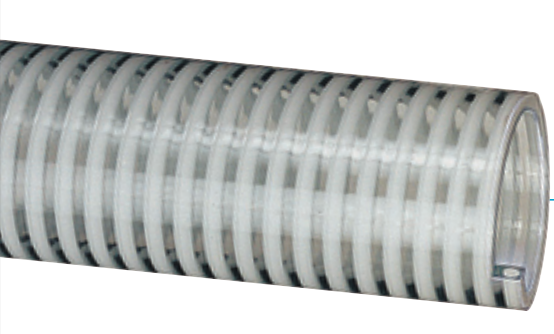

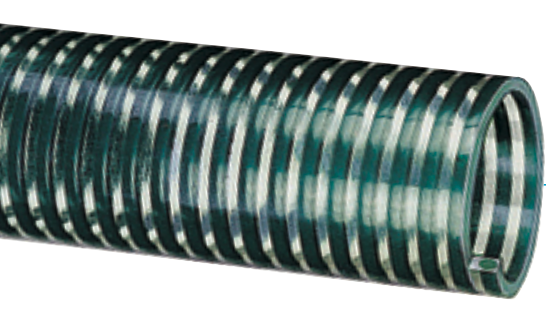

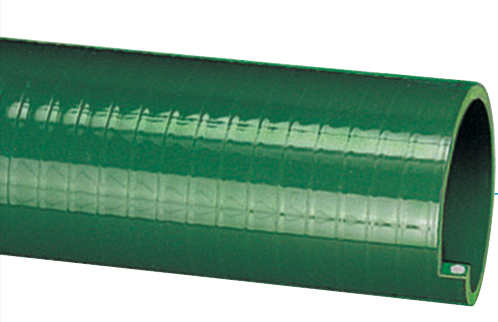

Standard-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Air seeder lines • Drain lines • Irrigation lines • Mining applications • Pumps, rental and construction dewatering • Pumps, trash • Rock dusting • Water suction – standard duty
CONSTRUCTION PVC tube with rigid PVC helix
Standard-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Air seeder lines • Drain lines • Irrigation lines • Mining applications • Pumps, rental and construction dewatering • Pumps, trash • Rock dusting • Water suction – standard duty
CONSTRUCTION PVC tube with rigid PVC helix
Standard-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Air seeder lines • Drain lines • Irrigation lines • Mining applications • Pumps, rental and construction dewatering • Pumps, trash • Rock dusting • Water suction – standard duty
CONSTRUCTION PVC tube with rigid PVC helix

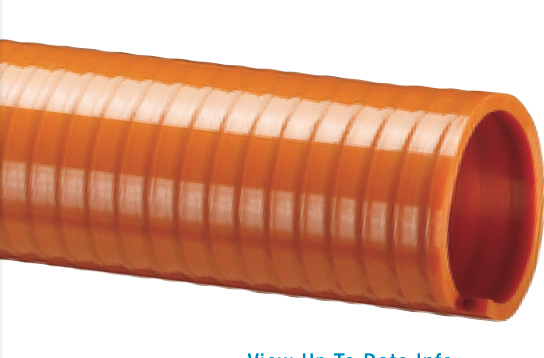

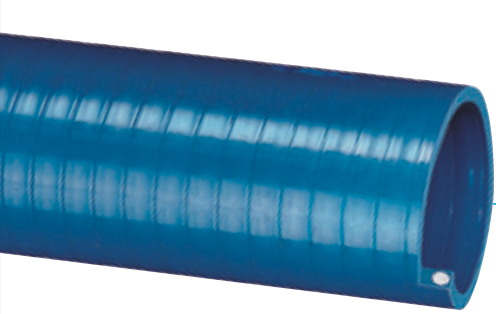

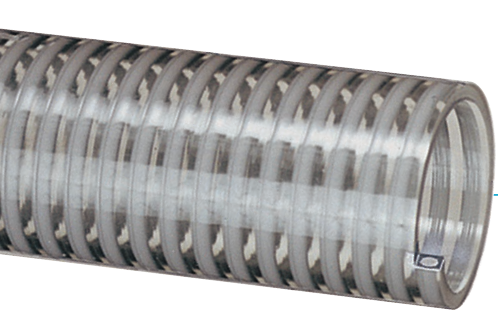

Heavy-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Water suction – heavy duty
CONSTRUCTION PVC tube with rigid PVC helix
Heavy-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Water suction – heavy duty
CONSTRUCTION PVC tube with rigid PVC helix
Heavy-Duty, PVC Suction Hose
GENERAL APPLICATIONS • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Water suction – heavy duty
CONSTRUCTION PVC tube with rigid PVC helix

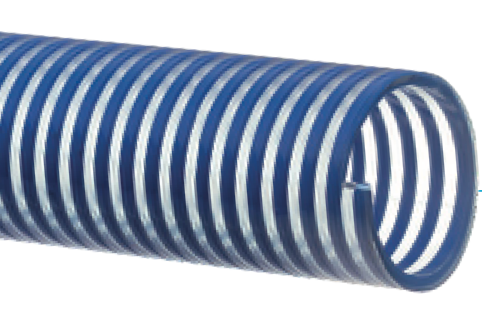

Low Temperature, PVC Suction Hose
GENERAL APPLICATIONS • Extreme cold conditions • Pumps, rental and construction dewatering • Pumps, trash • Water suction – standard duty
CONSTRUCTION PVC tube with rigid PVC helix

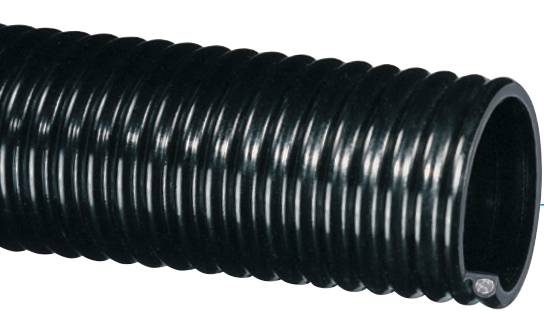

Extra Heavy-Duty, Low Temperature, PVC Suction Hose
GENERAL APPLICATIONS • Extreme cold conditions • Irrigation lines • Material handling – standard duty • Pumps, rental and construction dewatering • Pumps, trash • Slurry handling • Water suction – heavy duty
CONSTRUCTION PVC tube with rigid PVC helix

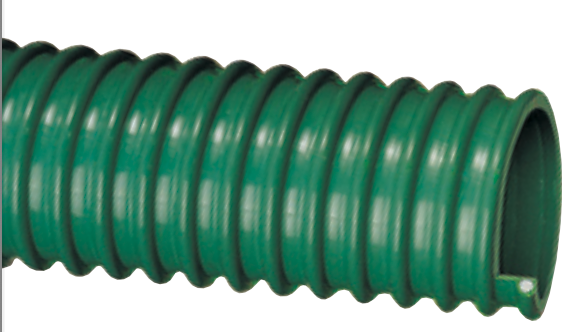

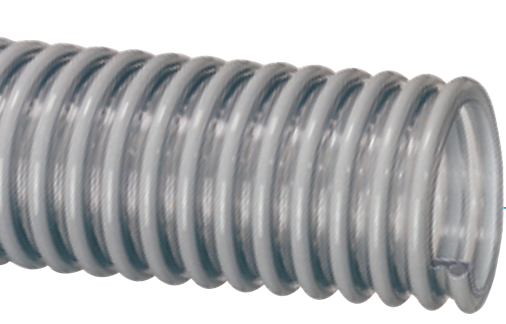

Heavy-Duty, PVC Liquid Suction Hose
115V, single-phase
GENERAL APPLICATIONS • Extreme cold conditions (Sizes 4" - 16") • Fish suction • Gold dredging • Pumps, rental and construction dewatering • Pumps, trash • Slurry handling • Water suction – heavy duty

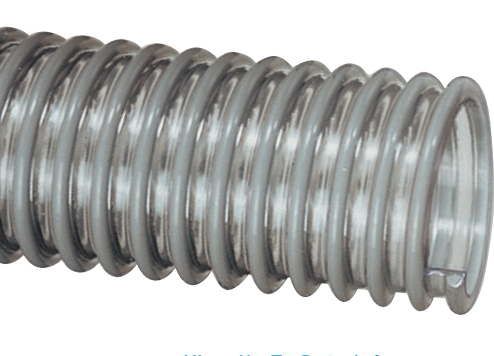

Standard-Duty, PVC Liquid Suction Hose
GENERAL APPLICATIONS • Drain lines • Dust collection • Gold dredging • Water suction – standard duty
CONSTRUCTION PVC tube with rigid PVC helix

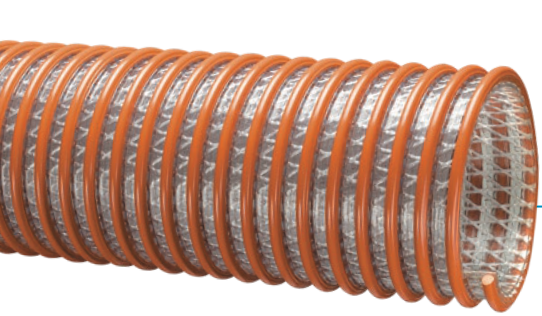

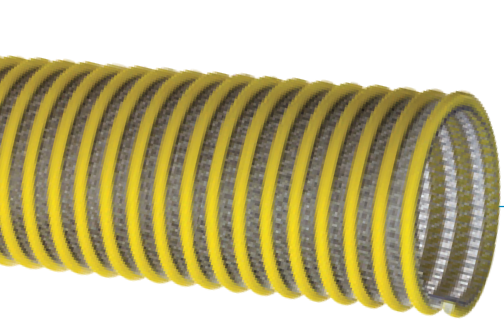

Heavy-Duty, PVC, Fabric Reinforced, Suction & Discharge Hose
GENERAL APPLICATIONS • Fish suction • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Suction and discharge • Water suction – heavy duty
CONSTRUCTION Double-ply PVC tube, polyester fabric reinforcement and rigid PVC helix
Heavy-Duty, PVC Liquid Suction Hose
GENERAL APPLICATIONS • Fish suction • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Rock dusting • Water suction – heavy duty
CONSTRUCTION PVC tube with rigid PVC helix

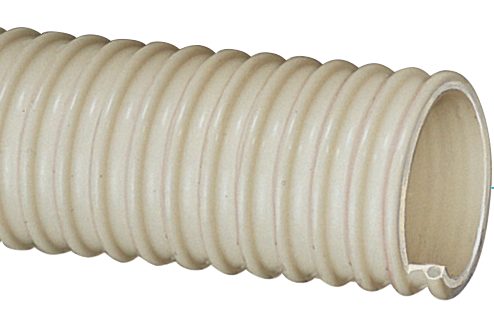

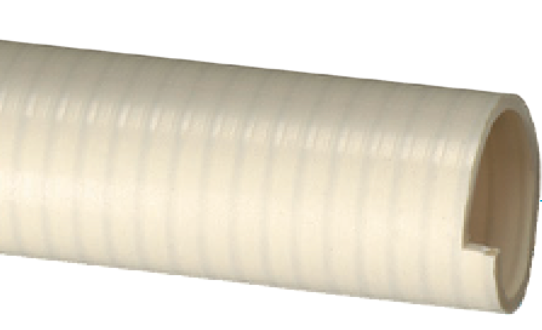

PVC Suction Hose
GENERAL APPLICATIONS • Drain lines • Marine bilge discharge • Marine plumbing • Recreational vehicle (RV) plumbing
CONSTRUCTION PVC tube with rigid PVC helix

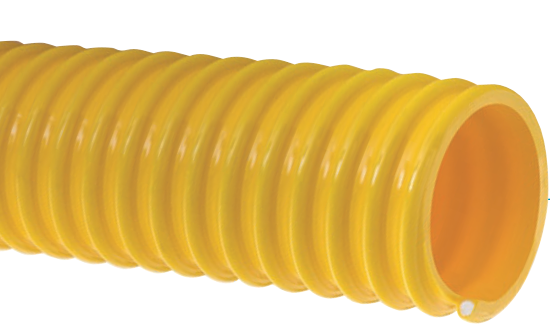

PVC Liquid Suction Hose with High UV Resistance
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Air seeder lines • Irrigation lines • Pumps, rental and construction dewatering • Pumps, trash • Water suction – standard duty
CONSTRUCTION Flexible PVC tube with rigid PVC helix

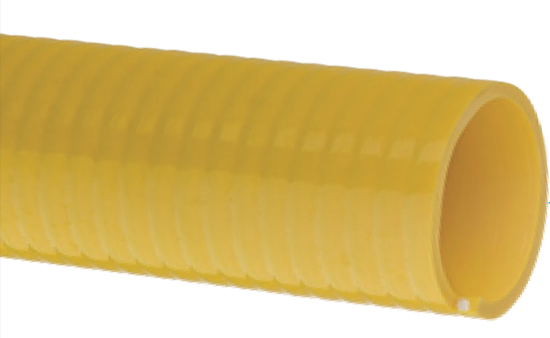

PVC Liquid Suction Hose with High UV Resistance
GENERAL APPLICATIONS • Agricultural liquid fertilizer • Air seeder lines • Irrigation lines View Up To Date Info • Pumps, rental and construction dewatering • Pumps, trash • Water suction – heavy duty
CONSTRUCTION Flexible PVC tube with rigid PVC helix
Heavy Duty PVC Fabric Reinforced Suction & Discharge Hose with High UV Resistance
GENERAL APPLICATIONS • Fish suction • Irrigation lines • Pumps, rental and construction • Pumps, trash • Suction and discharge • Water suction – heavy duty dewatering
CONSTRUCTION Double-ply PVC tube, polyester fabric reinforcement and rigid PVC helix.
PVC Suction Hose
GENERAL APPLICATIONS • Commonly referred to as “fl ex pipe” • Drain lines • Spa, pool and hot tub plumbing
CONSTRUCTION PVC tube with rigid PVC helix

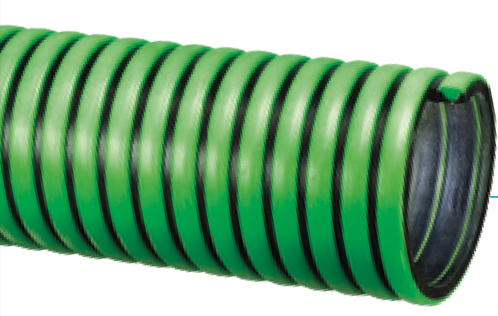

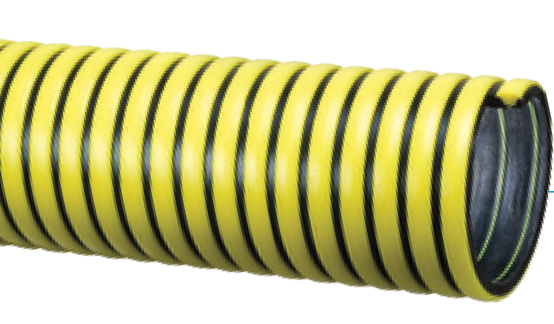

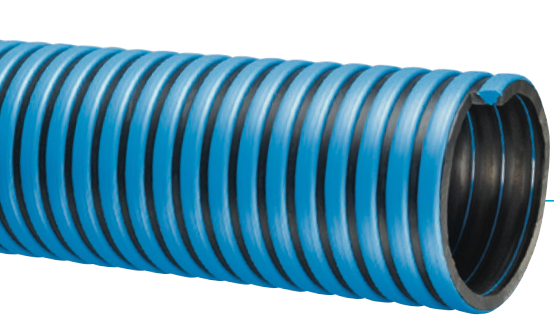

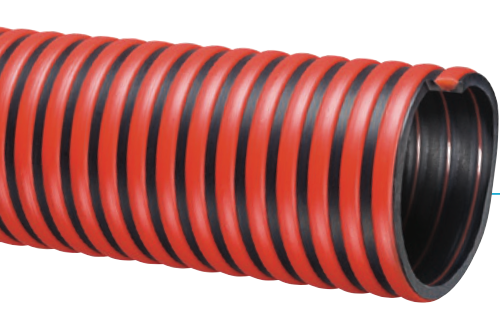

EPDM Suction Hose
GENERAL APPLICATIONS • Agriculture liquid fertilizers • Irrigation lines • Liquid manure handling • Marine bilge discharge • Pumps, rental and construction dewatering • Pumps, trash • Septic and wastewater handling • Used frack solution removal • Water suction – standard duty
CONSTRUCTION EPDM tube with polyethylene helix
EPDM Suction Hose
GENERAL APPLICATIONS • Agriculture liquid fertilizers • Irrigation lines • Liquid manure handling • Marine bilge discharge • Pumps, rental and construction dewatering • Pumps, trash • Septic and wastewater handling • Used frack solution removal • Water suction – standard duty
CONSTRUCTION EPDM tube with polyethylene helix
EPDM Suction Hose
GENERAL APPLICATIONS • Agriculture liquid fertilizers • Irrigation lines • Liquid manure handling • Marine bilge discharge • Pumps, rental and construction dewatering • Pumps, trash • Septic and wastewater handling • Used frack solution removal • Water suction – standard duty
CONSTRUCTION EPDM tube with polyethylene helix
EPDM Suction Hose
GENERAL APPLICATIONS • Agriculture liquid fertilizers • Irrigation lines • Liquid manure handling • Marine bilge discharge • Pumps, rental and construction dewatering • Pumps, trash • Septic and wastewater handling • Used frack solution removal • Water suction – standard duty
CONSTRUCTION EPDM tube with polyethylene helix

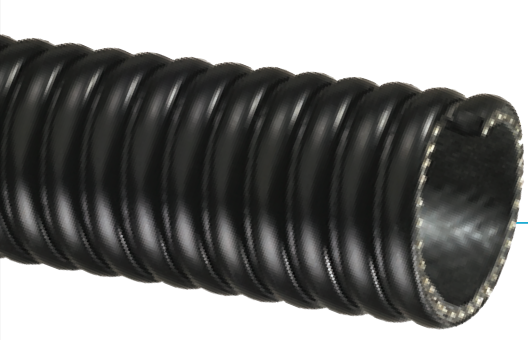

EPDM Fabric Reinforced, Suction & Discharge Hose
GENERAL APPLICATIONS • Agriculture liquid fertilizers • Agri-foam systems • Liquid manure handling • Pumps, rental and construction dewatering • Pumps, trash • Septic and wastewater handling • Suction and discharge • Water suction – heavy duty
CONSTRUCTION Double-ply EPDM, polyester fabric reinforcement and polyethylene helix

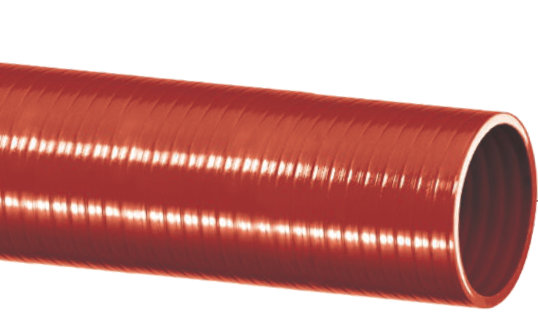

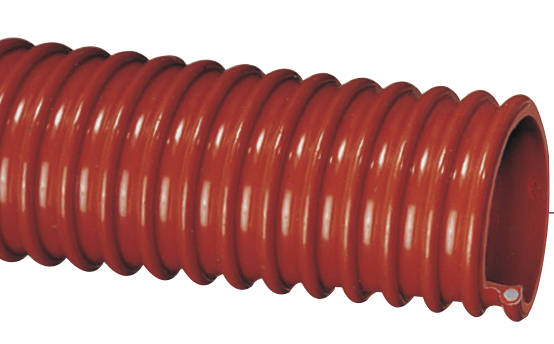

Standard-Duty, Oil Resistant, PVC Suction Hose
GENERAL APPLICATIONS • Environmental cleanup • Oil skimming • Oil slurrie • Oil suction • Vapor recovery – hydrocarbon emissionss
CONSTRUCTION Oil resistant PVC tube with rigid PVC helix

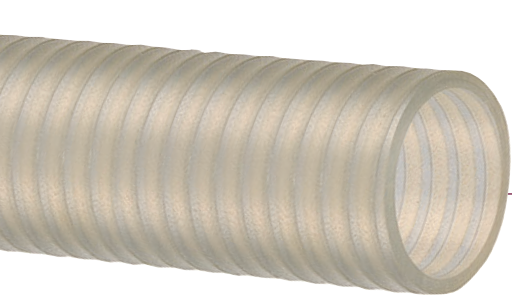

Heavy-Duty, Oil Resistant, Polyurethane Suction Hose
GENERAL APPLICATIONS • Material handling - heavy duty abrasive • Material chutes • Oil suction – heavy duty
CONSTRUCTION Polyurethane tube with rigid PVC helix
Standard-Duty, Oil Resistant, PVC Suction Hose
GENERAL APPLICATIONS • Environmental clean-up • Oil skimming • Oil slurries • Oil suction • Vapor recovery – hydrocarbon emissions
CONSTRUCTION Oil resistant PVC tube with rigid PVC helix

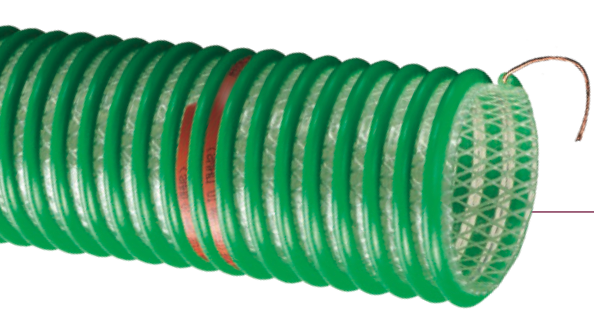

Clear, “See-the-flow” Drop Hose
GENERAL APPLICATIONS • Tank truck gravity drop fuel transfer
CONSTRUCTION Polyurethane (TPU) tube with polyester fabric reinforcement, rigid square PVC helix and embedded grounding wire

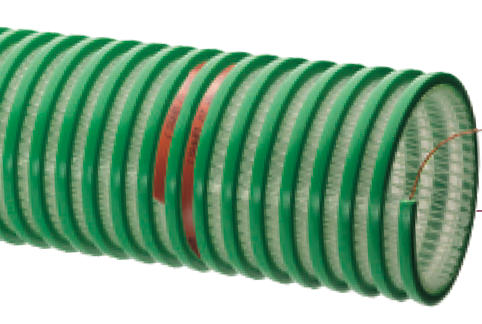

Clear, “See-the-flow” Drop Hose
GENERAL APPLICATIONS • Tank truck gravity drop fuel transfer
CONSTRUCTION Polyurethane (TPU) tube with polyester fabric reinforcement, rigid PVC helix and embedded grounding wire

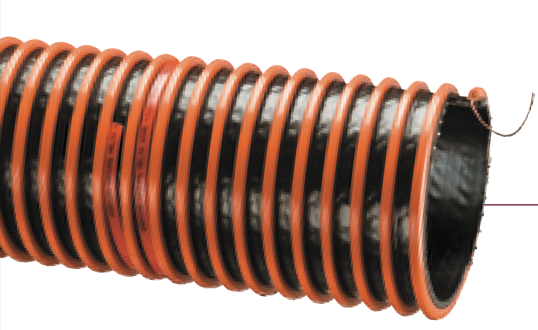

Nitrile, Static Dissipating Drop Hose
GENERAL APPLICATIONS • Tank truck gravity drop fuel transfer
CONSTRUCTION Specially blended nitrile (NBR) rubber tube with polyester fabric reinforcement, rigid PVC helix and embedded grounding wire

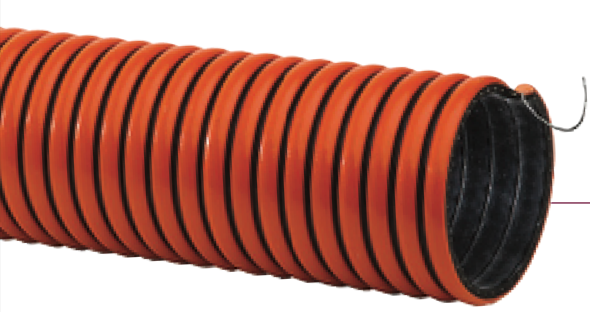

GENERAL APPLICATIONS • Petroleum and Slurry Transfer • Oil Recycling • Grease Trap Removal
115V, single-phase
CONSTRUCTION Specially blended nitrile (NBR) rubber tube with polyester fabric reinforcement, rigid PVC helix and grounding wire

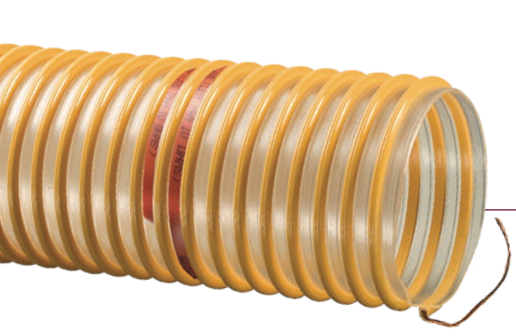

Standard Duty Vapor Recovery Hose
GENERAL APPLICATIONS • Tank truck vapor recovery
CONSTRUCTION Polyurethane (TPU) tube with rigid PVC helix and embedded grounding wire

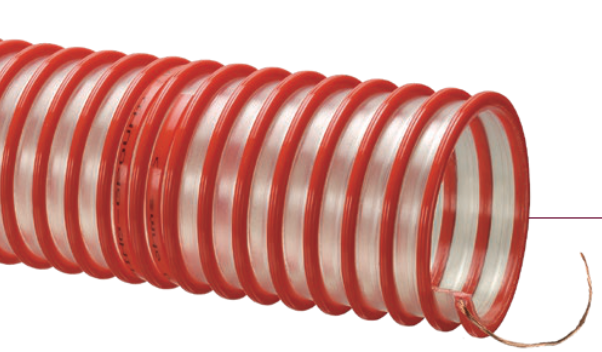

Heavy Duty, Vapor Recovery Hose
GENERAL APPLICATIONS • Tank truck vapor recovery
CONSTRUCTION Polyurethane (TPU) tube with rigid PVC helix and embedded grounding wire.

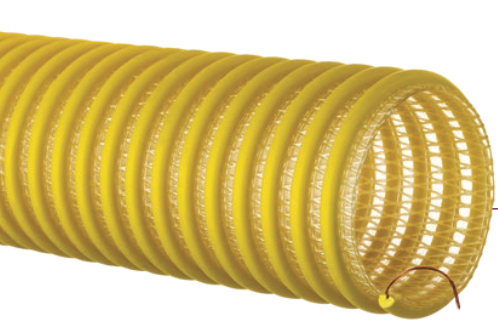

Heavy Duty Reinforced Vapor Recovery Hose
GENERAL APPLICATIONS • Vapor recovery during terminal loading • Vapor recovery for fuel delivery NOTE: Not intended for liquid fuel use
CONSTRUCTION Polyurethane (TPU) tube with polyester fabric reinforcement, rigid PVC helix and embedded grounding wire

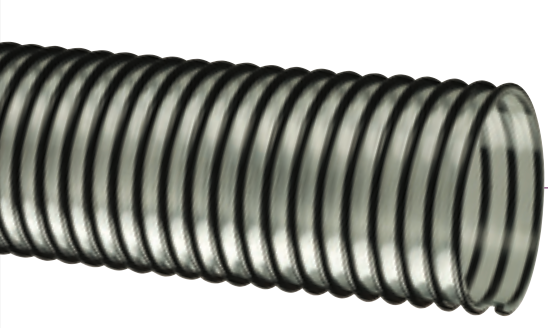

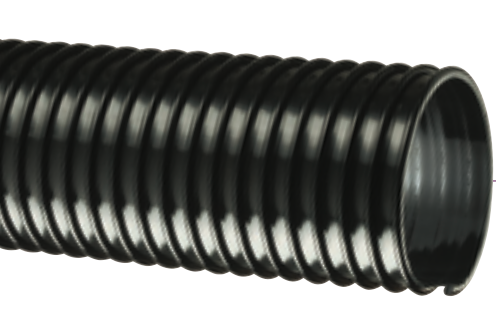

Low Temperature, PVC, Ducting/Material Handling Hose
GENERAL APPLICATIONS • Dust collection • Lawn and leaf collection • Material handling – light duty
CONSTRUCTION PVC tube with rigid PVC helix
Low Temperature, PVC, Ducting/Material Handling Hose
GENERAL APPLICATIONS • Dust collection • Lawn and leaf collection • Material handling – light duty
CONSTRUCTION PVC tube with rigid PVC helix
Polyurethane Ducting/Material Handling Hose
GENERAL APPLICATIONS • Concrete resurfacing dust collection • Ducting, ventilation and fume removal • Dust collection • Insulation blowing • Material chutes • Material handling – standard duty
CONSTRUCTION Ester polyurethane (TPU) tube with rigid PVC helix

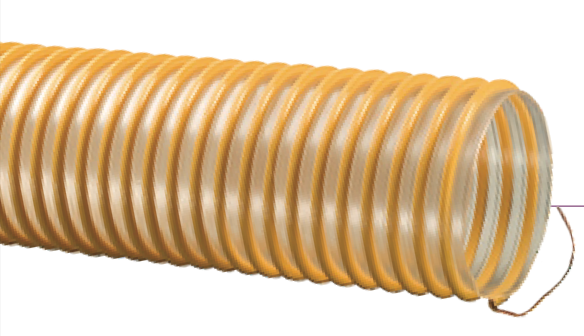

Polyurethane Ducting/Material Handling Hose with Grounding Wire
GENERAL APPLICATIONS • Concrete resurfacing dust collection • Ducting, ventilation and fume removal • Dust collection • Insulation blowing • Material chutes • Material handling – standard duty
CONSTRUCTION Ester polyurethane (TPU) tube with rigid PVC helix

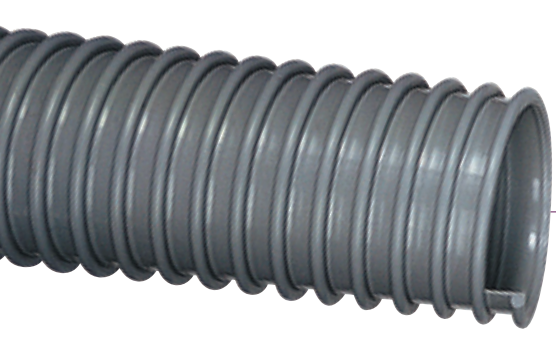

PVC Ducting/Material Handling Hose
GENERAL APPLICATIONS • Cable protection • Drain lines • Ducting, ventilation and fume removal • Dust collection • Material handling – light duty
CONSTRUCTION PVC tube with rigid PVC helix
PVC Ducting/Material Handling Hose
GENERAL APPLICATIONS • Cable protection • Drain lines • Ducting, ventilation and fume removal • Dust collection • Material handling – light duty
CONSTRUCTION PVC tube with rigid PVC helix

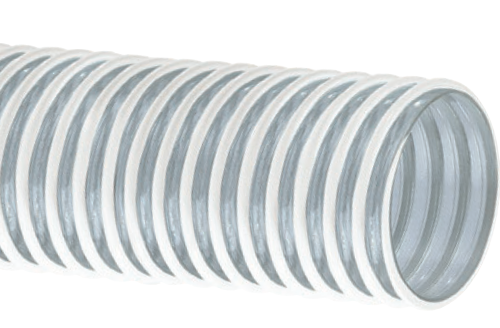

PVC Ducting Cover Protection Hose
GENERAL APPLICATIONS • Cable and hose bundle protection (MSHA) • Dust collection • Ducting, ventilation and fume removal • Mine supply line cover protection
CONSTRUCTION PVC tube with rigid PVC helix

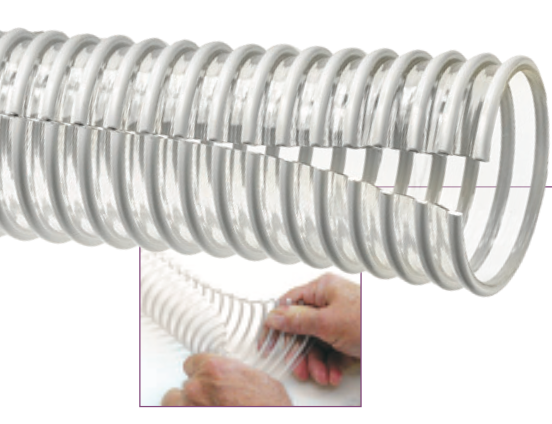

Pre-slit PVC Protection Cover Hose
GENERAL APPLICATIONS • Cable and hose bundle protection (MSHA) • Mine supply line cover protection
CONSTRUCTION PVC tube with rigid PVC helix (pre-slit)
Thermoplastic hoses and tubing developed for air and water transfer, spraying, chemical applications, potable water, and specialty equipment.
Rubber General Purpose Air & Water Hose
GENERAL APPLICATIONS • Air and water service in industrial, construction, and agricultural applications • Air compressors • Pneumatic tools • Spray equipment • Low-pressure transfer of non-corrosive liquids
CONSTRUCTION Tube – Black EPDM Reinforcement – Braided polyester yarn Cover – Black or Red EPDM
Flexible ducting hose solutions for ventilation, dust collection, fume removal, material movement, and industrial air handling.
Dispensing Hose For Diesel Exhaust Fluids (DEF)
GENERAL APPLICATIONS • DEF fuel trailers • DEF station pumps • Drum filling • Mobile filling trailers • Portable dispensers• Transfer carts • Used to convey the high-purity, aqueous urea solution, DEF (Diesel Exhaust Fluid), in dispensing equipment systems
CONSTRUCTION Tube – Black, conductive sulphur-free EPDM Reinforcement – High tensile textile braids Cover – Black, conductive abrasion and ozone resistant EPDM
150 PSI Gray Food S & D Hose
GENERAL APPLICATIONS • Liquid, fatty, oily food and alcoholic beverage, max 75% alcohol content (150 proof), suction and discharge • Hose may be sterilized with 5% soda solution • Not recommended for dry abrasive materials
CONSTRUCTION Tube – White NBR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords with flexible steel helix wire Cover – Corrugated gray NBR/PVC – abrasion, ozone and oil resistant
150 PSI Potable Water Hose* * HOSE IS NOT NSF APPROVED
GENERAL APPLICATIONS • Discharge of water used for drinking • Most often used for temporary water lines in construction and industrial applications
CONSTRUCTION Tube – White NR – Meets FDA and 3A (18-03) requirements Reinforcement – High tensile textile cords – 2 ply Cover – Blue SBR/EPDM blend – abrasion and ozone resistant
Bristle Blaster tools are designed for corrosion removal, coating preparation, and industrial maintenance. Their impact-based technology removes surface material while creating an anchoring profile, with manufacturer-reported cleanliness comparable to specified abrasive blasting grades under appropriate conditions.
These tools are useful for maintaining steel structures, pipelines, industrial equipment, and other surfaces requiring preparation before protective coatings. The Axial model extends these capabilities to narrow areas such as weld seams, joints, corners, and flanges.
The Bristle Blaster range also accommodates specialized working conditions. Cordless models improve mobility in hard-to-reach areas, while pneumatic configurations provide compressed-air operation. The Subsea model supports underwater maintenance and surface preparation.
An important feature of Bristle Blasting is its cold-working process, which is designed to avoid significant heating of the substrate. Combined with grit-free operation and specialized replacement belts, this approach supports controlled surface preparation across different industrial applications.
Z Abrasives offers replacement Bristle Blaster belts and supporting components for different surface preparation requirements. Choosing the appropriate belt material, width, and configuration helps ensure that the tool is suitable for the surface and application.
Standard steel and stainless steel belts are available in 11 mm and 23 mm widths. Specialized Axial belts are offered in left- and right-hand configurations, while Subsea belts are available for the hydraulic underwater system.
Additional components include Accelerator Bars, adapter systems, protective hoods, compatible cordless batteries, chargers, and complete tool sets. Certain components are specifically designed for the Double Electric or Cordless configurations and should be matched to the appropriate equipment.
Looking for Bristle Blaster tools, replacement belts, or supporting accessories? Contact Z Abrasives with your tool model and product requirements. Our team can review your inquiry and help you request further information about the equipment or components you need.
Phone
714-330-3177
Email:
szia@zabrasives.com
Monday - Friday:
8AM - 4PM
Saturday - Sunday:
Closed
Available after hours with an appointment
All Rights Reserved | Z Abrasives, Inc.
