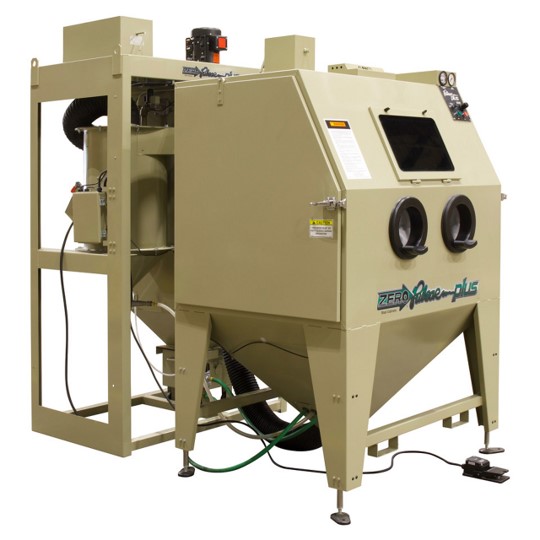

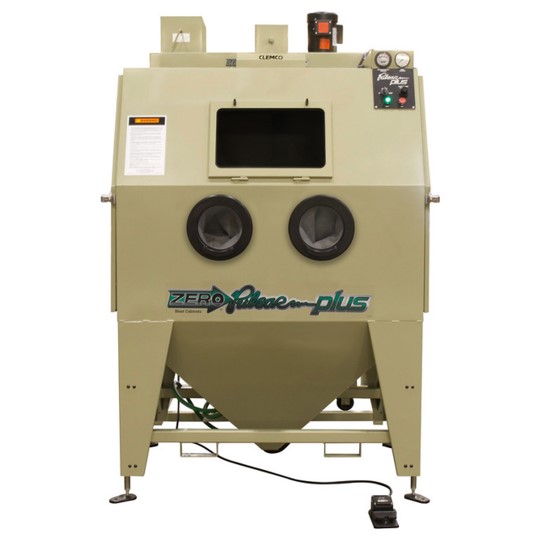

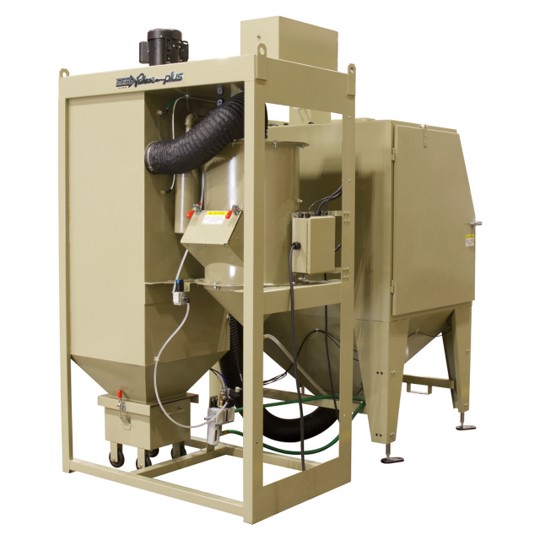

Pulsar Plus VI-S

The Clemco Zero Brand Pulsar Plus VI-S with 600 CFM Reclaim is a high-production suction blast cabinet designed foe use with low air volume. They are equipped with the industry-leading BNP Blast Gun, which sets the standard for efficiency and productivity.

BNP® Blast Gun
• The pistol-grip design is comfortable to hold for long periods, which increases operator productivity by reducing fatigue.
• The gun’s efficiently designed mixing chamber eliminates slugging and uneven media flow.
• Pulsar Plus Suction Cabinets come equipped with a No. 5 blast gun and a ceramic nozzle.
• Optional tungsten carbide and boron carbide nozzles handle more aggressive media.

System Efficiency
• The 1/2” air filter is properly configured with each Pulsar Plus Suction Cabinet to trap oil and water that can inhibit media flow and contaminate cleaned parts.

Complete System
Space requirements depend on desired workflow. Allow
additional workspace for operator and maintenance needs.

Pulsar VI
• 71” width (1803 mm)
• 52” depth (1321 mm)
• 84” height (2134 mm)

Grate load limit on all models is 500 lbs.

Working Chamber

Pulsar VI
• 50” width (1270mm)
• 39” depth (991mm)
• 43” height (1092mm

Door Opening

Pulsar VI
A. 36.5” (927 mm)
B. 38” (965 mm)
C. 19.5” (495 mm)
D. 20.5” (521 mm)
E. 27” (686 mm)

Electrical
300 CFM and 600 CFM
1 HP, 115V, 1 PH, 60 Hz
Note: Some installations
may require electrical
connection by a qualified
electrician.

Window Size (safety glass)
• 19.5” width (495 mm)
• 12.5” height (318 mm)

Dust Collector Filtering Area
300 CFM (9.9 m2) • 600 CFM (18.1 m2)
Pulsar Plus Cabinets have a pleated dust filter with a
MERV-12 rating. For work environments with especially
toxic dust, order an optional HEPA filter. They trap 99.988%
of dust down to 0.3 micron particles.
