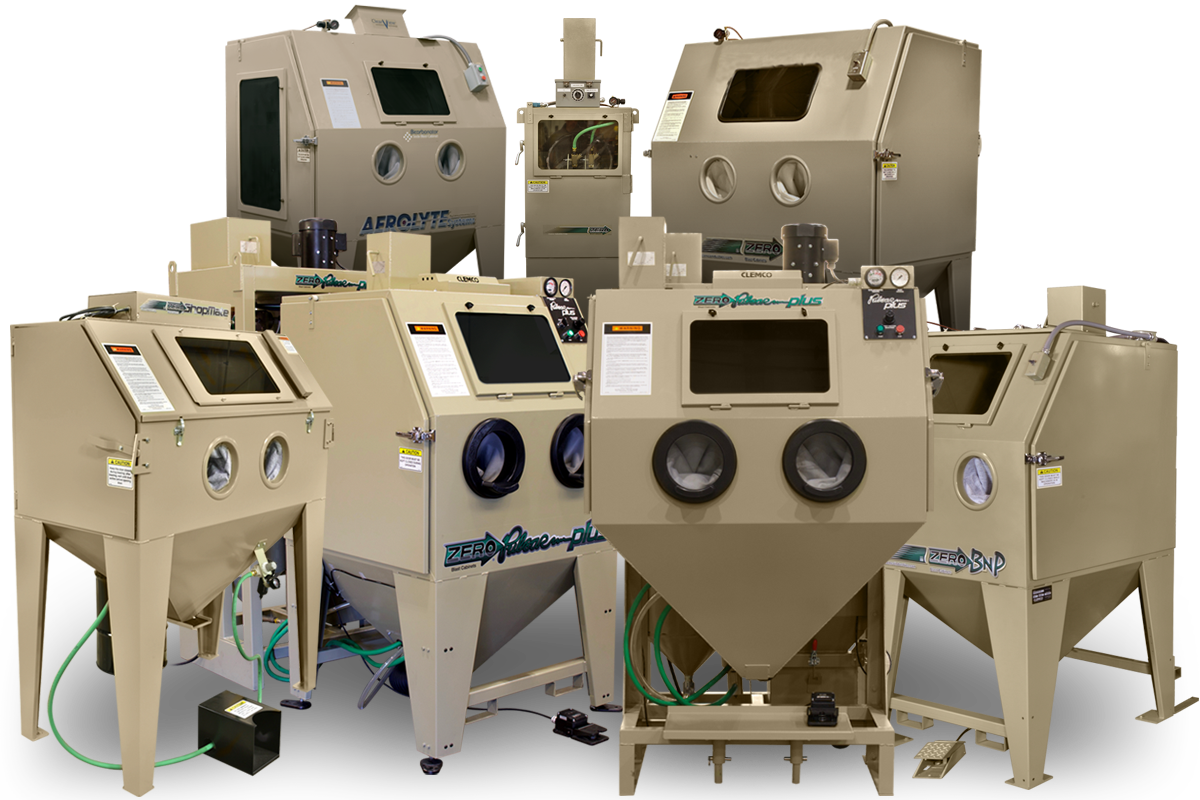

Blast Cabinets

product image
left arrow
thumbnail images
right arrow

This high quality brand belongs to the product group “automation”. Automated systems are ideal for processing large quantities. Clemco integrates automated cabinets seamlessly into a customer’s production line and guarantees accurate as well as consistently repeatable results while providing peak efficiency.

Automation

Tumble Cabinet BNP-162

The tumble cabinet is designed for automated blasting of small parts by a dust-free suction blast system. Due to the tumble rotation, the abrasive stream always hits on a changing surface and produces a consistent result. An extendable catch tray enables easy loading and unloading processes of the tumble and the integrated time switch guarantees an effective workflow.

The BNP-162 is working with two blast nozzles and has a maximum load of 45kg (18Liter).

Area of application

Cleaning, Deburring and blasting of small parts

Total dimension: W x H x D *

1310 x 1850 x 1000 mm

Weight *

550kg kg

Air consumption

1,3m³/min at 5,5 bar (9,5mm nozzle)

Abrasive media

glass beads and corundum

Features

time switch

extendable catch tray
