HOPPER RECOVERY SYSTEMS (MECHANICAL)

CLEMCO |  HOPPER RECOVERY SYSTEMS (MECHANICAL)
Part number: 06468

Hopper Recovery Systems include:
Hopper assembly with 250 lbs per square foot grating and bucket el evator assembly (1 HP motor) with integrated underspeed monitor.

Specify electrics: 230v 3ph 60hz or 460v 3ph 60hz.

NOTE: ALL other room components must be purchased separately, such as air-wash abrasive cleaner, abrasive-cleaner dust collector, blast machine package, two-pot stand, operator safety equipment, electrical control panel, and blast room dust collector.

Available configurations:

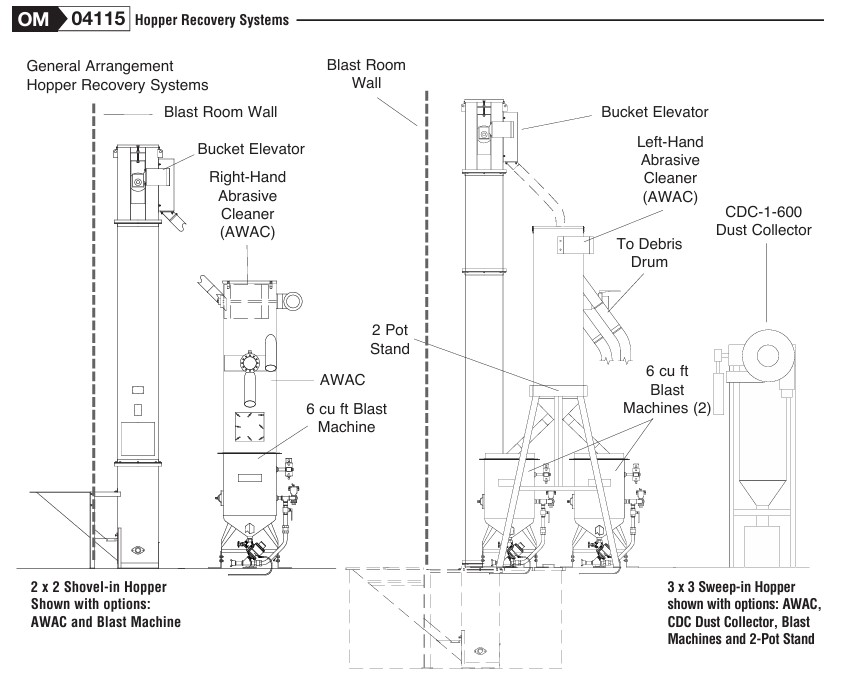

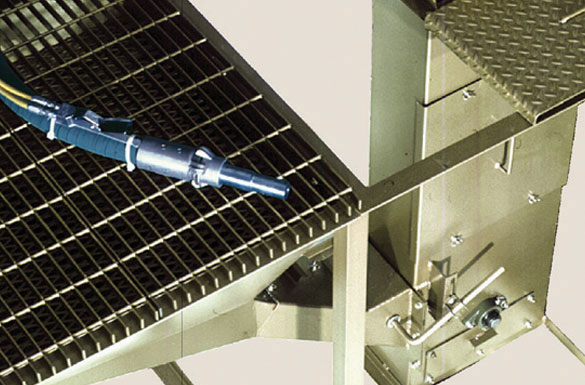

3 ft L x 3 ft W sweep-in recessed-in-floor recovery system:
• For one blast machine | Part number: 06468
• For two blast machines| Part number: 27056 (does not include two-pot stand)

2 ft L x 2 ft W shovel-in recovery system:
 • For one blast machine | Part number: 06427

Electrical control panel
(hopper, abrasive cleaner, and 1 HP dust collector)
• 230v 3ph 60hz | Part number: 27874
• 460v 3ph 60hz | Part number: 27875
