TLR-300C PNEUMATIC REMOTE CONTROL WITH ACS
![product det image](http://www.zabrasives.com/uploads//RLX%20Pneumatic%20Handle%20-%201028%201042.jpg?auto=compress%2Cformat&fit=min&fm=jpg&q=80&rect=0%2C22%2C717%2C400)
![left arrow](/assets/theme/images/icon-right.png)
![Rlx Pneumatic Handle 1028 1042](http://www.zabrasives.com/uploads//RLX%20Pneumatic%20Handle%20-%201028%201042.jpg?auto=compress%2Cformat&fit=min&fm=jpg&q=80&rect=0%2C22%2C717%2C400)
![right arrow](/assets/theme/images/icon-right.png)
CLEMCO | TLR-300C PNEUMATIC REMOTE CONTROL WITH ACS
Part number: 21153
TLR-300 C remote controls are for use with sandblasting machines with 1 1/2” piping. This TLR-300-C remote control features a 1” piston outlet valve, meant for standard use, as well as an RLX control handle with an abrasive cut-off switch (ACS).
This remote includes:
TLR 1 1/4" - 1 1/2" Inlet Valve
1" piston outlet valve
Pneumatic RLX Control Handle with Abrasive Cut-off Switch
50ft twinline and ACS supply hose
An abrasive trap
All required fittings and hoses
This system features an abrasive cut-off system (ACS), which permits the operator to shut-off the abrasive flow for clearing the blast hose and for blowing down the surface after blasting.

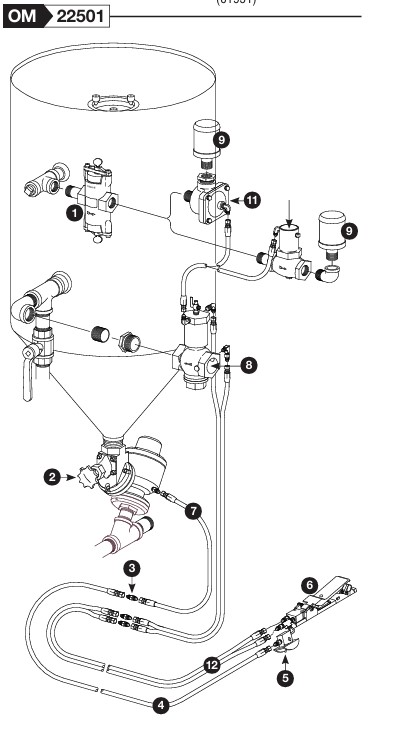

Replacemente parts breakdown: TLR 300C with ACS
1. Abrasive Trap | Part number: 02011
2. Metering Valve (Valve differ from that shown
3. Hose Union | Part number: 01944
4. 50’ Single Line | Part number: 03087
5. ACS Switch Assembly | Part number: 07654
6. RLX Control Handle with ACS | Part number: 07625
7. 3/16” x 18” Coupled Hose | Part number: 02454
8. Inlet Valve • 1-1/4” / 1-1/2” | Part number: 01995
9. Muffler | Part number: 05068
10. Piston Outlet Valve | Part number: 01967
11. Diaphragm Outlet Valve | Part number: 03371
12. 50’ Twinline Hose | Part number: 01951
