INDUSTRIL N-200 SIPHON

product det image
left arrow
N200 2 N200 N200 1 N200 4 N200 3
right arrow

MBA |  INDUSTRIL N-200 SIPHON
Part number: CobraStageII

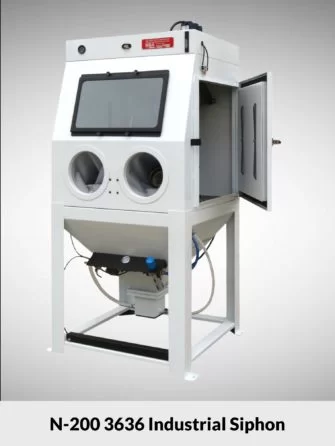

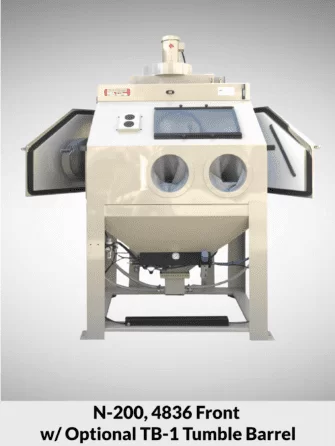

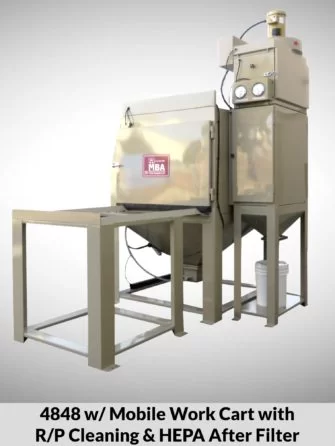

The N-200 Siphon sand blasting cabinet by Media Blast® is industrial sandblasting equipment designed for Production capacity applications, which require one (1) hour or more of daily operation using a production gun size, 25 to 90 cfm compressed air. This blast cabinet is in a class alone and is used in military applications and projects requiring fast cleaning with low maintenance cost. Low maintenance cost means the very best blast cabinet parts for reduced wear when using larger, faster, cfm gun sizes.

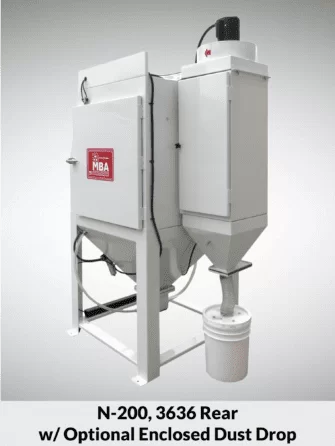

The dust collector on this Mediablaster® is negative pressure, and has the most advanced cartridge filtration and effortless pneumatic cleaning cycle assembly standard. It is a large percentage of the sand blasting cabinet cost, but worth every penny. These features ensure longer machine duty cycle, a cleaner work area, and longer blower service life. The capacity to store dust with ease of service is what makes this MediaBlaster sandblasting equipment the right choice for Production Operations. In addition, an even larger dual cartridge option is available for extended daily operation using larger abrasive gun sizes.

This industrial sandblast equipment N-200 model blast cabinet is available with two top styles, 40-degree window slope for low height parts with great operator viewing and 17-degree expanded height top for taller parts requiring more inside cabinet height and less view window angle.


| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |

Model Name:

N-200 Siphon

Machine Type:

Industrial, production capacity, machine high duty cycle – larger faster cfm gun sizes – high duty cycle

Abrasive Delivery:

Dry, siphon

Air Specs:

25-90 cfm

Compressed Air Usage:

25 to 90 cfm at 80 psi

Suggested Air Compressor:

The standard gun size for the N-200 is 3/8″ using 46 cfm at 80 psi. Smaller and larger gun sizes are available for applications with larger and smaller air compressors. Air compressors vary greatly, check the cfm output on the compressor being used or visit Air Basics for more information on compressor selection.

Pro Tip: Never buy a compressor using the displacement cfm numbers; always use the second cfm volume number listed with 90-100 psi inside the tank.

Standard Cleaning Cycle is pneumatic vibration, optional reverse pulse available; always make sure 100 psi line pressure is available for proper machine control operation.

RECOMMENDED ABRASIVE SIZE:

60 to 150 mesh, cabinet size sensitive, larger cabinet size 60 to 120 mesh

Additional Abrasive Info:

Angel of Repose varies with mesh size

Most Used Abrasive Type:

Glass Beads, Aluminum Oxide, Silicon Carbide, Plastic and more, S-110 and finer Steel Shot

Dust Collector

700 & 1100 cfm blowers – 220 to 440 sq.ft. cartridge filters – hopper dust storage – pneumatic vibrator cleaning standard – patented separator reclaimer – high duty cycle

Key Features

9 standard production cabinets – internal cyclone separator – 120 volt and high voltage electrical single power standard – abrasive mixing valve – LED lighting – all air controls – carbide nozzle – safety glass window with protector – hopper drain – work grates – and more

Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.

STANDARD FEATURES:

  • 100% welded 14-gauge CRS cabinet construction
  • Bolt-on machine hopper, replaceable
  • Adjustable abrasive flow-control mixing valve, replaceable
  • Foot operated blast control valve with treadle pedal
  • 3-Y blast gun with 3/8” tungsten carbide nozzle standard
  • Long wear abrasive hose
  • LED outside cabinet lighting on standard top with LED flood lighting
  • LED flood lighting on expanded height models
  • 13 x 24-inch safety glass ClearView® window
  • Glass window protector, low static
  • Window Sweep
  • Double panel door construction, no spills
  • Lockable refrigerator door handle
  • Safety door interlock
  • Precision air-regulator, air filter/water trap with gauge
  • 10” diameter work ports with two-piece glove and gauntlet
  • Easy to use operator dash panel
  • Expanded metal work grates, 3/4″ – #9 flattened
  • Bolt-in cabinet hopper scalper screen
  • 1/2 hp 700 cfm @ 1” S.P. class III pressure blower
  • Separator reclaimer, pneumatic centrifuge (*Patented) internal
  • 220 sq.ft. MERV tested certified cartridge filter with pneumatic vibrator cleaning cycle
  • Hopper dust storage and maintenance access service door
  • Machine Lag Pads
  • Catalyst paint
