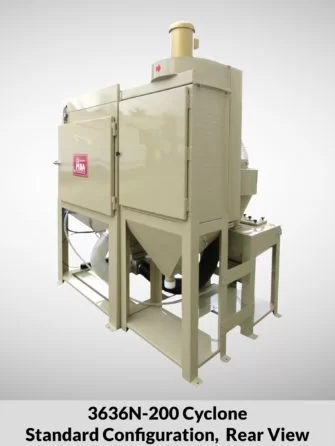

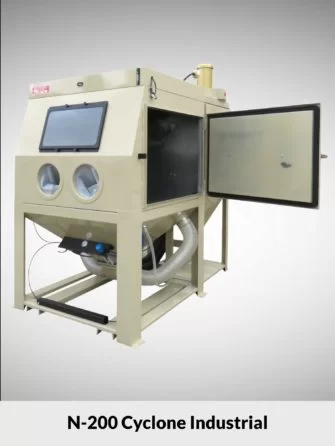

N200cyclone N200cyclone2
right arrow

Part number: N200CycloneSiphon

The N-200 Cyclone Siphon sand blasting cabinet is made from 100% welded 12- and 14-gauge CRS. It was designed for applications requiring fine and ultra-fine abrasive, but it can also operate with most standard abrasive 60-325 mesh. Look at the HEPA after filter in available options for machine cell operation using 220 mesh and finer.

The N-200 Cyclone dry siphon sandblasting cabinet has the lowest abrasive usage of any machine design. It is also one of the most effective type of sandblasting equipment at controlling and recycling fine abrasive blasting media (180 to 325 mesh). Fine abrasive can cause visibility problems; mixing valve feed problems and high abrasive usage rates.

| Media Blast Cabinets | Sandblasting | MBA | Mediablaster | Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |

Model Name:

N-200 Cyclone

Machine Type:

Used for almost any abrasive size, best for ultrafine 180 mesh and smaller – includes the pneumatic conveyor and cyclone separator reclaimer – high duty cycle

Abrasive Delivery:

Dry Siphon

Air Specs:

25 to 90 cfm

Compressed Air Usage:

25 to 90 cfm at 80 psi

Suggested Air Compressor:

The standard gun size for the N-200 is 3/8″ using 46 cfm at 80 psi. Smaller and larger gun sizes are available for applications with larger and smaller air compressors. Air compressors vary greatly, check the cfm output on the compressor being used or visit Air Basics for more information on compressor selection.
Pro Tip: Never buy a compressor using the displacement cfm number, always use the second cfm volume number listed with 90-100 psi inside the tank, because tank pressure reduces performance.

Recommended Abrasive Size:

150 to 320 mesh, can also use larger mesh sizes


Larger than 150 mesh operate in N-200 modle

Most Used Abrasive Type:

Glass Beads, Aluminum Oxide, Silicon Carbide, Plastic and more

Dust Collector:

700 & 1100 cfm blower– 220 & 440 sq.ft. cartridge filters – pneumatic abrasive conveyor – outside abrasive storage hopper – high efficiency cyclone – HEPA after filter available for 220 mesh and finer

Key Features:

external cyclone separator and pneumatic conveyor for fine abrasive control – 120 volt and high voltage electrical available – abrasive mixing valve – LED lighting – all air controls – carbide nozzle – safety glass window & protector – hopper drain – work grates – outside abrasive storage hopper – 9 cabinet models – available with Optional HEPA after filter for control of fine ultra-fine abrasives

Paint Specification:

Environmentally friendly, high-grade polyurethane high gloss paint. Standard colors include MBA beige and high gloss light gray. Custom color matching is available using customer supplied color sample, please call 866-204-7068 for pricing.


  • 100% welded 12- and 14-gauge CRS cabinet construction
  • Bolt-on machine hopper, replaceable
  • Adjustable abrasive flow-control mixing valve, replaceable
  • Foot operated blast control valve with treadle pedal
  • 3-Y blast gun, 46 cfm, 3/8” tungsten carbide nozzle standard most sizes
  • Long wear abrasive hose
  • LED outside cabinet lighting on standard top with LED flood light fixture
  • LED flood lighting on expanded height & square top models
  • Safety glass view window, ClearView®, 13” x 24”
  • Glass window protector, low static
  • Double panel door construction, no spills
  • Lockable refrigerator door handle
  • Safety door interlock
  • Precision air-regulator, air filter/water trap with gauge
  • 10” diameter work ports with two-piece glove and gauntlet
  • Expanded metal work grates, 3/4″ – #9 flattened
  • Bolt-in cabinet hopper scalper screen
  • 2 hp 1100 cfm class III pressure blower (all models 3636 & larger), 3/4 hp 700 cfm class III pressure blower on smaller 3628 & 4828 size
  • Replaceable abrasive mixing valve
  • Vertical abrasive mixing valve sump, replaceable
  • Blow-off gun
  • Dual cartridge-440 sq.ft. dust collector (all models 3636 & larger) 220 sq.ft. dust collector on 3628 and 4828 models
  • Hopper dust storage, 3.5 cubic foot storage on 3636 and larger
  • 1100 cfm blower (all models 3636 & larger)
  • Pneumatic abrasive conveyor and outside abrasive storage hopper
  • Replaceable high efficiency cyclone separator reclaimer standard, barrel type available
  • Adjustable cyclone efficiency tuning valve
  • Machine Lag Pads
  • Catalyst paint
