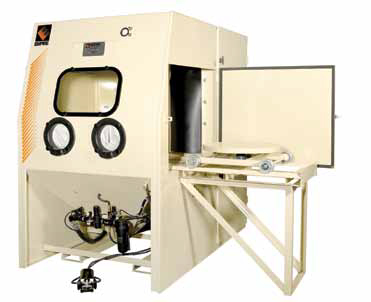

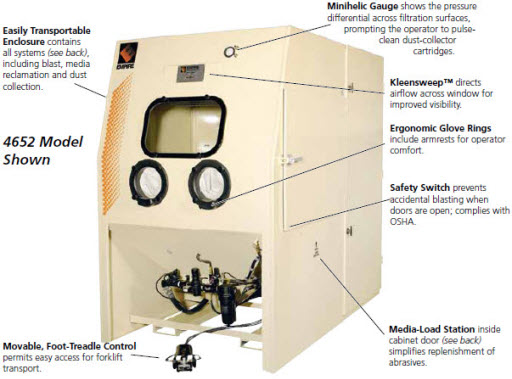

Proformer2 Proformer Blast Cabinet Features
right arrow

Part number: Pro-former

ProFormer™ cabinets put it all together in a single assembly that’s easy to move and simple to hook up. These cabinets require only two connections, air and electrical, and include features offered in our high-production Pro-Finish® line. Plus, they now come in two sizes: the 3642 with interior working dimensions of 36 inches deep by 42 inches wide by 48 inches high and its bigger brother, the 4652, with working space of 46 inches by 52 inches by 48 inches.

| Media Blast Cabinets | Sandblasting | Blast Cabinets | EMPIRE | Abrasive Equipment |Gabinetes | Cabina | Gabinete de Sandblast | Gabinete de Arenado | Cabina para Sandblasting | Gabinete de Mesa |

Overall Dimensions (D x W x H)

72 x 44 x 82 Inch

Inside Dimensions, Cabinet (D x W x H)

36 x 42 x 48 Inch

Door Sizes, Left and Right (D x H)

29 x 32 Inch

Ceramic Nozzle (Pressure)

3/16 Inch

Ceramic Nozzle (Suction- AirJet)

5/16 to 5/32 Inch

Pipe String (Pressure)

1 Inch

Pipe String (Suction)

1/2 Inch

Pressure Vessel (ASME Certified)

1 ft³

  • Ergonomic glove rings with operator armrests
  • Rubber, cloth-lined gloves
  • Two, 90-watt flood lights
  • Dust-off gun
  • Pneumatic foot-treadle control
  • 14" x 22" safety-glass window with quick-change frame
  • Air-pressure regulator and gauge
  • Media regulator
  • Leveling bolts
  • 14-gauge construction on cabinet enclosure
  • 3/16" perforated floor with 1,000- pound capacity
  • 600 CFM ventilation
